OMRON Multiple Limit Switch 2SB01D4-1Y 2 Position 125VAC 0.1A 30 VDC 2SB 01D4-1Y

This is a Multiple limit switch made by OMRON Japan, the model number is 2SB01D4-1Y or 2SB 01D4-1Y, with 2 position, 0.1A - 125VAC 0.1A - 30 VDC with 8-mm Pitch between Plungers.

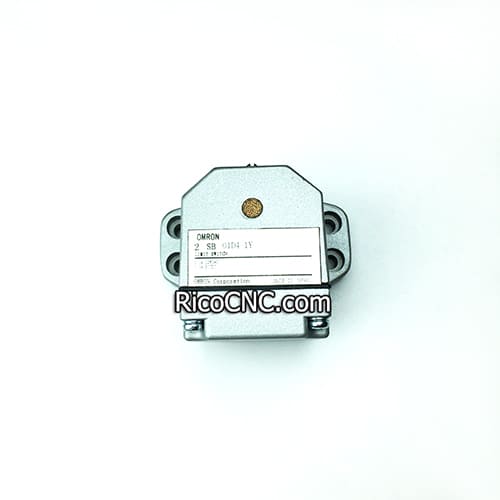

2SB 01D4-1Y.jpg

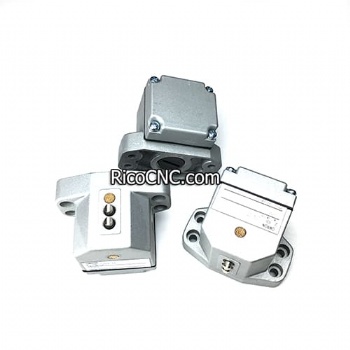

Omron Limit Switch.jpg

Omron Limit Switch SB series(2SB01D4-1Y) technical data:

Degree of protection	IP67
Life expectancy	Mechanical: 1,500,000 operations min. Electrical: 100,000 operations min. (Under constant conditions)


Operating speed	0.05 mm/s to 0.5 m/s
Operating frequency	Mechanical: 120 operations/min Electrical: 30 operations/min
Operating frequency
Rated frequency	50/60 Hz
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	100 mΩ max. (initial value)
Dielectric strength	600 VAC, 50/60 Hz for 1 min between terminals of same polarity 1,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and ground, and between each terminal and non-current-carrying metal part
Vibration resistance	Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction: 1,000 m/s2 min. Malfunction: 200 m/s2 min.
Shock resistance	Destruction: 1,000 m/s2 min. Malfunction: 200 m/s2 min.
Ambient temperature	Operating: –10°C to 80°C (no icing)
Ambient humidity	Operating: 95% max.
Weight	Approx. 220 (two plunger type) to 360 g (six plunger type)

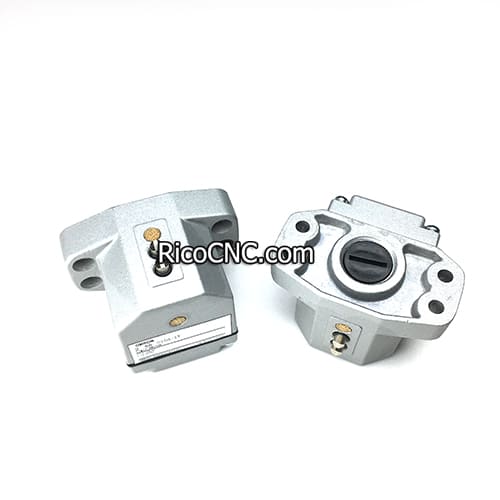

Subminiature Multiple Limit Switch.jpg

Type# 2SB01D4-1Y 2 Position switch.jpg

There are also other models from OMRON can be supplied, such as: 2SBD4-1, 2SBD4-101, 2SBD4-2, 2SB01D4-1, 2SB01D4-1Y, 2SB01D4-1Y NTC, 2SB01D4-1 NTC, 3SBD4-1, 3SB01D4-1 NTC, 3SB01D4-1Y NTC, 4SBD4-1, 4SBD4-1S, 4SB01D4-1, 4SB01D4-1 NTC, 4SB01D4-1Y NTC, etc.
