Long Foam Cutting Tools EPS Milling Router Bits Ballnose Flat End and Conical
Long foam mill bits.jpg

These big long series foam end mill, ball nose and conical router bits are widely used with robot milling machine and huge CNC router which used to cut molds from EPS foam, polyurethane foam, Polyfoam, eva foam, plastic, etc. The long foam cutting tools are great for extended reach machining, deep foam cutting, cnc sculpting big items, cnc routing foam. They are helpful mills for building cnc foam moulds and for advertising signs making.
Ballnose foam cutters.jpg

Long Foam Milling Cutter Tools Features:
1, High Speed Steel (HSS) hardness: HRC 61-64.5°
Super hard high speed steel (HSS) industrial router bits provide deeper cuts and larger slices with fewer passes in thick foam, resulting in improved productivity and less assembly.
2, Sharp spiral blade for clear smooth finishing (4 flutes or 6 flutes or 8 flutes), more flutes will get better finishing surface,
The up cut spiral design removes chips away from the workpiece. Unlike straight fluted tools, the chips are effectively flowing out of the milling channel and thus avoids clogging of the cutter tool.
3, Extended Reach for deep foam cutting, carving and milling
4, Foam milling bits size could be DIY customized
Polyfoam big long foam cutting bits.jpg

Nowadays 5-axis foam mill CNC routers, big gantry router for foam milling, 6 axis robotic arm, 7 axis industrial robots, are ideal for milling epoxy, foam and clay 3D design models. Ricocnc is a professional supplier for round end (ball end) and flat end (End mill) and conical (tapered) foam mill bits.
The long foam cutting tools are great for extended reach machining, deep foam cutting, cnc sculpting big items, cnc routing foam, robot milling.

Foam tapered and round nose bits.jpg

For cutting and rough milling, flat endmill foam bits recommended;
For rough carving and big size engraving, ballnose foam cutters is a good choice;
For carving in detail, conical tapered edge foam mills is a better choice. Tapered router bits can help you achieve high details in deep carving, improving the intricacy and detail of your products.
Diameter: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, etc.

Ball nose EPS Foam Router Bits
Item No.	SHK	CED	Radius	CEL	OVL
D6xR3x100x150 4T	6	6	3	100	150
D8xR4x100x150 4T	8	8	4	100	150
D10xR5x100x150 4T	10	10	5	100	150
D10xR5x150x200 4T	10	10	5	150	200
D12xR6x100x150 4T	12	12	6	100	150
D12xR6x150x200 4T	12	12	6	150	200
D16xR8x150x200 4T	16	16	8	150	200
D16xR8x200x250 4T	16	16	8	200	250
D16xR8x250x310 4T	16	16	8	250	310
D16xR8x300x360 4T	16	16	8	300	360
D16xR8x350x410 4T	16	16	8	350	410
D20xR10x150x200 6T	20	20	10	150	200
D20xR10x200x250 6T	20	20	10	200	250
D20xR10x250x300 6T	20	20	10	250	300
D20xR10x300x360 6T	20	20	10	300	360
D20xR10x350x410 6T	20	20	10	350	410
D25xR12.5x200x250 6T	25	25	12.5	200	250
D25xR12.5x250x300 6T	25	25	12.5	250	300
D25xR12.5x300x350 6T	25	25	12.5	300	350
D25xR12.5x350x400 6T	25	25	12.5	350	400
D30xR15x300xd25x360 6T	25	30	15	300	360
D32xR8x300x360 8T	32	32	8	300	360
D32xR8x350x410 8T	32	32	8	350	410
D32xR8x450x500 8T	32	32	8	450	500
D34xR10x300xd32x360 6T	32	34	10	300	360
D40xR12x300xd32x360 8T	32	40	12	300	360
D40xR12x350xd32x400 8T	32	40	12	350	400
D40xR12x450xd32x500 8T	32	40	12	450	500

Flat End Foam Mill Bits
Item No.	SHK	CED	CEL	OVL
D6x100x150 4T	6	6	100	150
D8x100x150 4T	8	8	100	150
D10x100x150 4T	10	10	100	150
D12x100x150 4T	12	12	100	150
D12x150x200 4T	12	12	50	200
D16x150x200 4T	16	16	150	200
D16x200x250 4T	16	16	200	250
D16x250x310 4T	16	16	250	310
D16x300x360 4T	16	16	300	360
D16x350x410 4T	16	16	350	410
D20x150x200 6T	20	20	150	200
D20x200x250 6T	20	20	200	250
D20x250x300 6T	20	20	250	300
D20x300x350 6T	20	20	300	350
D20x350x400 6T	20	20	350	400
D25x200x250 6T	25	25	200	250
D25x250x300 6T	25	25	250	300
D25x300x350 6T	25	25	300	350
D25x350x400 6T	25	25	350	400
D30x300xd25x360 6T	25	30	300	360
D32x300x360 8T	32	32	300	360
D32x350x400 8T	32	32	350	410
D32x450x500 8T	32	32	450	500
D34x300xd32x360 6T	32	34	300	360
D40x300xd32x360 8T	32	40	300	360
D40x350xd32x400 8T	32	40	350	400
D40x450xd32x500 8T	32	40	450	500

Conical Ball End Tapered Bits
Item No.	SHK	Radius	Conical Blade Length	Overall Blade Length	OVL Overall Length
D12xR1.5x100x200 3T	12	1.5	100	100	200
D16xR3x80x250x300	16	3	80	250	300
D16xR3x80x300x350	16	3	80	300	350
D16xR3x80x350x400	16	3	80	350	400
D20xR3x80x250x300	20	3	80	250	300
D20xR3x80x300x350	20	3	80	300	350
D20xR3x80x350x400	20	3	80	350	400

Please choose the suitable item you need, and decide the quantities.
Foam milling bits.jpg

Recommend parameters for foam milling
The long bits for foam cutting, we usually recommend run at 6000-7000rpm. It is good to the machine cutters and can get good surface finish.
Feeding speed at 5000-6000mm/min.
For bigger and longer bits, suggest start from 3000rpm, and adjust. The tool not vibrates much and not make much noise is ok.
You can adjust it from slow speed.
These parameters just for reference, you can adjust as per your machine’s rigid, foam density, cutting depth, etc. Just test from slow speed to avoid tool broken.
CNC foam cutter.jpg

Ball nose, conical tapered bits, and flat square end mill foam mills are available, also we can make big long solid carbide router bits for wood mould milling.

Mill for CNC robot.jpg

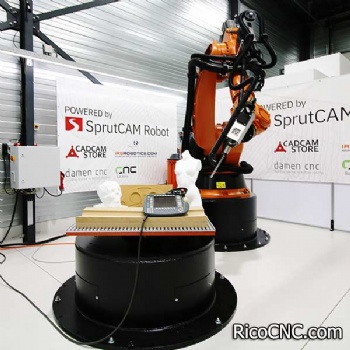

RicoCNC foam mill bits are widely worked with KUKA, YASKAWA robotics, SprutCAM Robot, gantry 5 axis machining centers, big foam-cutting gantry routers, and get great feedback and more orders from our clients.
If you are looking for effective EPS and foams cnc milling extra long end mill cutters, welcome your inquiry.
