Flat End High Speed Steel TiN Coated Best CNC Router Bit For Cutting Foam

Flat End High Speed Steel TiN Coated Best CNC Router Bit For Cutting Foam

• Foam cutting router bit
• Material: HSS, high speed steel,
• Direction up-cut
• Foam cutting end mill
• Flat end foam cutting tools
• Bits for milling foam
• Foam cutter router bit
• Foam cutting bits with TiN Coated
INQUIRY

foam router bit.jpg

Flat End High Speed Steel TiN Coated Best CNC Router Bit For Cutting Foam

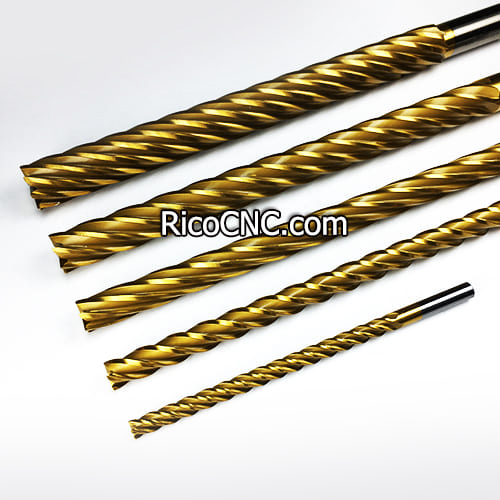

These tools are foam cutting end mills, used for big foam milling, made by high speed steel, with coated TiN (Titanium Nitride).

These long flute foam router bits are ideal for deep cavity machining, mold making and 3D carving. They are widely used on CNC routers and CNC machining center, including various application, such as, 5 axis milling, digital 3D,digital fabrication, digital sculpture, robotic solution,3d sculpting, architectural millwork, 3D modeling, 3D Rendering, robotic milling, 3D foam.
bits for milling foam.jpg

The TiN coating can enhance the tool's wear resistance, improves heat dissipation, and extends the tool's lifespan.

cnc foam bits.jpg

CNC foam cutting bits are perfect for milling many types of foam, thick foam, such as Polyurethane Foam, Polyethylene Foam, Extruded Polystyrene Foam (XPS), Expanded Polystyrene (EPS), etc.
foam cutting bits.jpg

Foam Cutting Router Bits Features:
1.High Speed Steel (HSS) hardness: HRC 61-64.5°
2.TiN Coated, extends tool life
3.Extened-long foam bits for 2D and 3D CNC Carving & Milling
4. Customizable foam bits

The foam bits without TiN Coated are also available here

HSS foam bits.jpg

Available sizes of CNC foam cutter :

Flat End Up Cut Foam Router Bits
Item No.	shank diameter (mm)	cutter edge diameter (mm)	cutter edge length (mm)	overall length (mm)
D6x100x150 4T	6	6	100	150
D8x100x150 4T	8	8	100	150
D10x100x150 4T	10	10	100	150
D12x100x150 4T	12	12	100	150
D12x150x200 4T	12	12	50	200
D16x150x200 4T	16	16	150	200
D16x200x250 4T	16	16	200	250
D16x250x310 4T	16	16	250	310
D16x300x360 4T	16	16	300	360
D16x350x410 4T	16	16	350	410
D20x150x200 6T	20	20	150	200
D20x200x250 6T	20	20	200	250
D20x250x300 6T	20	20	250	300
D20x300x350 6T	20	20	300	350
D20x350x400 6T	20	20	350	400
D25x200x250 6T	25	25	200	250
D25x250x300 6T	25	25	250	300
D25x300x350 6T	25	25	300	350
D25x350x400 6T	25	25	350	400
D30x300xd25x360 6T	25	30	300	360
D32x300x360 8T	32	32	300	360
D32x350x400 8T	32	32	350	410
D32x450x500 8T	32	32	450	500
D34x300xd32x360 6T	32	34	300	360
D40x300xd32x360 8T	32	40	300	360
D40x350xd32x400 8T	32	40	350	400
D40x450xd32x500 8T	32	40	450	500
