Ball End HSS TiN Coated Extended Reach Spiral Flute Foam Cutting Tools

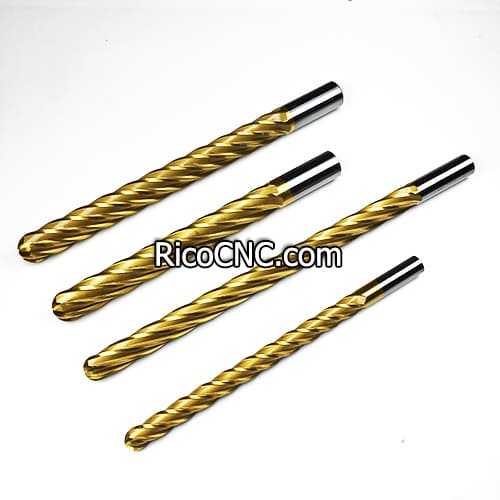

These ball nose bits are used for foam carving and are made from high speed steel, with coated TiN (Titanium Nitride).

Ball nose foam router bits.jpg

These long flute foam cutting tools are great for deep carving, shaping, sculpturing.
They are widely used on CNC routers, CNC machining center and CNC robotic for various applications, such as mold making, 5-axis milling, digital 3D, 3D carving, 3D modeling, 3D rendering, 3D foam, architectural millwork, robotic fabrication, digital fabrication, digital sculpture, and robotic solutions.
CNC router bits for foam.jpg

The TiN coating enhances the foam cutter's wear resistance, improves heat dissipation, and extends the tool's lifespan.
EPS foam cutting tool.jpg

These foam cutting bits are best for thick foam carving, such as Polyurethane Foam, Polyethylene Foam, Extruded Polystyrene Foam (XPS), Expanded Polystyrene (EPS), etc.

Foam Router Bits Features:
1.High Speed Steel (HSS) hardness: HRC 61-64.5°
2.TiN Coated to extend tool life
3.Extended reach foam bits for 2D and 3D CNC Carving and Milling
4. Customizable foam cutters, including square end, ball end and conical ball end.
HSS foam bits.jpg

Available sizes of Ball end Up Cut Foam Router Bits:

Item No.	SHK mm	CED(diameter) mm	Radius mm	CEL(cutting height)	OVL (overall length)
D6xR3x100x150 4T	6	6	3	100	150
D8xR4x100x150 4T	8	8	4	100	150
D10xR5x100x150 4T	10	10	5	100	150
D10xR5x150x200 4T	10	10	5	150	200
D12xR6x100x150 4T	12	12	6	100	150
D12xR6x150x200 4T	12	12	6	150	200
D16xR8x150x200 4T	16	16	8	150	200
D16xR8x200x250 4T	16	16	8	200	250
D16xR8x250x310 4T	16	16	8	250	310
D16xR8x300x360 4T	16	16	8	300	360
D16xR8x350x410 4T	16	16	8	350	410
D20xR10x150x200 6T	20	20	10	150	200
D20xR10x200x250 6T	20	20	10	200	250
D20xR10x250x300 6T	20	20	10	250	300
D20xR10x300x360 6T	20	20	10	300	360
D20xR10x350x410 6T	20	20	10	350	410
D25xR12.5x200x250 6T	25	25	12.5	200	250
D25xR12.5x250x300 6T	25	25	12.5	250	300
D25xR12.5x300x350 6T	25	25	12.5	300	350
D25xR12.5x350x400 6T	25	25	12.5	350	400
D30xR15x300xd25x360 6T	25	30	15	300	360
D32xR8x300x360 8T	32	32	8	300	360
D32xR8x350x410 8T	32	32	8	350	410
D32xR8x450x500 8T	32	32	8	450	500
D34xR10x300xd32x360 6T	32	34	10	300	360
D40xR12x300xd32x360 8T	32	40	12	300	360
D40xR12x350xd32x400 8T	32	40	12	350	400
D40xR12x450xd32x500 8T	32	40	12	450	500

Diameter of foam router bits: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 32mm, 40mm, etc.
Flutes: 4 flutes, 6 flutes, 8 flutes.
