HSS Conical Ball Nose Foam CNC Router Bits with TiN Coated

HSS Conical Ball Nose Foam CNC Router Bits with TiN Coated

• Conical router bits for foam cutting
• Taper foam CNC cutting tools
• HSS foam router bits with TiN Coated
• High speed steel foam cutting tools
• Conical ball nose foam router bits
• Coated foam cutting tools
• EPS foam router bits
• 3D foam cutting bits
INQUIRY

HSS Conical Ball Nose Foam CNC Router Bits with TiN Coated

These tools are high-speed steel(HSS) conical foam router bits. These taper foam router bits are used for large foam carving and are made from high-speed steel coated with TiN (Titanium Nitride).

The TiN coating hardens and protects the cutting edges and helps smooth the flutes for improved chip ejection.

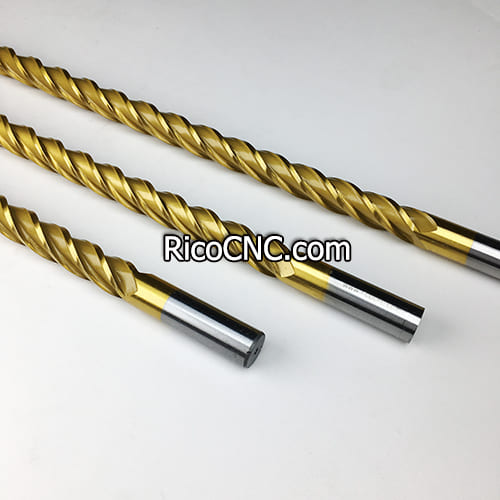

Taper foam CNC cutting tools.jpg

The conical router bits are great for deep carving, shaping, and sculpturing.They are widely used on CNC routers, CNC machining centers, and CNC robotics for various applications, such as mold making, 5-axis milling, digital 3D, 3D carving, 3D modeling, 3D rendering, 3D foam, architectural millwork, robotic fabrication, digital fabrication, digital sculpture, and robotic solutions.

EPS foam router bits.jpg

Features of conical ball end foam cutters:
1. High Speed Steel (HSS) hardness: HRC 61-64.5°
2. TiN Coated to extend tool life
3. Extended reach foam bits for 2D and 3D CNC Carving and Milling

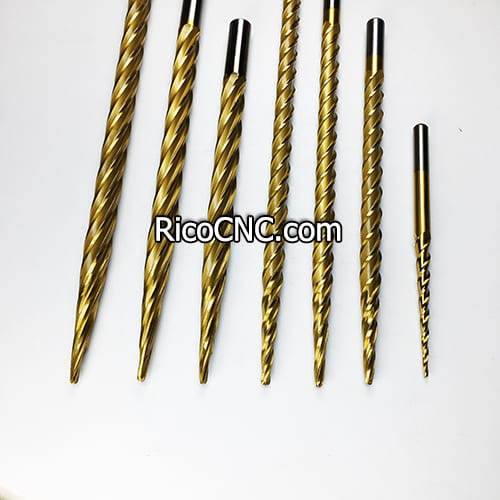

Conical ball nose foam router bits.jpg

Available sizes of tapered ball end Foam router bits:

Tapered ball end Foam router bits
Item No.	SHK (mm)	Radius	Conical Blade Length(mm)	Overall Blade Length (mm)	OVL Overall Length (mm)
D12xR1.5x100x200 3T	12	1.5	100	100	200
D16xR3x80x250x300	16	3	80	250	300
D16xR3x80x300x350	16	3	80	300	350
D16xR3x80x350x400	16	3	80	350	400
D20xR3x80x250x300	20	3	80	250	300
D20xR3x80x300x350	20	3	80	300	350
D20xR3x80x350x400	20	3	80	350	40

Coated foam cutting tools.jpg

RicoCNC supplies a range of coated CNC foam cutting tools including ball end foam router bits, flat end foam cutting tools, conical router bits of different diameters.
