Homag 4008320244 4-008-32-0244 Cylinder Switch Series SN2 0830100366


This is a AVENTICS cylinder switch, Series SN2 0830100366 12-60V DC, 12-240V AC, 10 W / VA, Reed Switch, C/W 5M Cable, Series SN2 Sensor (SN2-R2-K05V-240). It used in HOMAG machine, then HOMAG part number is 4008320244 or 4-008-32-0244.

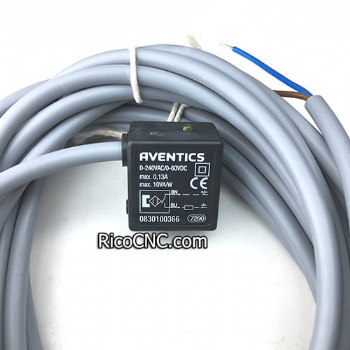

4008320244 cylinder switch.jpg

4008320244 cylinder switch Series SN2 0830100366 specifications:

Indirect mounting for series: TRB, PRA, ITS, MNI, CSL-RD, ICM, RPC, TRR, FLT, CVI

Version: Heat resistant

Cable: with cable

Type of contact: Reed

Switching capacity: 10 W / 10 VA

Protection class: IP67

Min. ambient temperature: -20 °C

Max. ambient temperature: 80 °C

Voltage drop U at Imax: 2,1 V + I*Rs

Protective resistor for reed: 27 Ω

DC switching current, max.: 0.13 A

AC switching current, max.: 0.13 A

Switching point precision: ±0,1 mT

LED status display: Yellow

Electrical connection 2, type: without wire end ferrule, tin-plated

Electrical connection 2, number of poles: 2-pin

Operating voltage DC, min.: 12 V DC

Operating voltage DC, max.: 60 V DC

Operating voltage AC, min.: 12 V AC

Operational voltage AC, max.: 240 V AC

Short circuit resistance: Protected against polarity reversal

Shock resistance: 50 g / 11 ms

Vibration resistance: 30 g (50 - 1000 Hz)

Cable length L: 5 m

Housing material: Polyamide

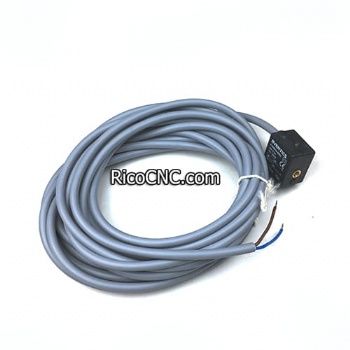

CYLINDER SWITCH 0.13A 60VDC 240VAC 3M.jpg

4-008-32-0244 Cylinder Switch Series SN2 0830100366 Features:

• Cubic sensor solution for universal applications

• A wide variety of sensor mountings for application needs

• With a M8-plug (2-, 3-, and 4-pin) directly on the sensor housing or free wire ends

• Service-friendly, since the line can be mounted directly on the housing

• Reed and electronic PNP sensor versions available

• Additional variant with pulse stretching available
