FUJI AC09-RZ Electric Rotary Switch

• AC09-RZ
• AC09-RZ Fuji Electric Rotary Switch
• AC09-RZ 0/25 L3/0007
• Fuji Electric Rotary Switch
• FUJl AC series rotary switches
• Electric Rotary Switch
• FUJI switch
• AC09-RZ series Rotary Switch
INQUIRY

AC09-RZ .jpg

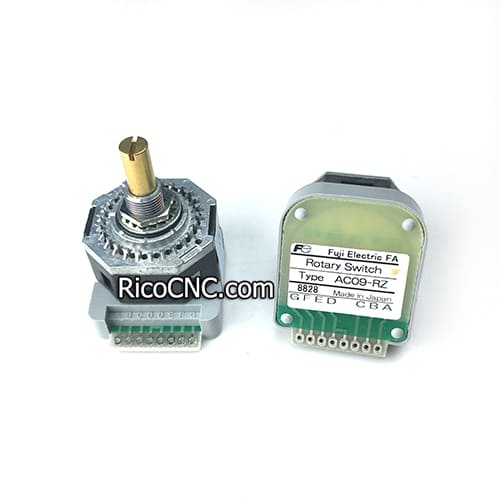

FUJI AC09-RZ Electric Rotary Switch

This is a AC09-RZ series Rotary Switch from Fuji Electric. It is with M9 nut, real binary code 15 degree, length of shaft 20mm, it needs to be a Zero to 25 switch, with 8 terminals, straight or right angle connector, with a lock ring (0007). The model series is AC09-RZ 0/25 L3/0007.

AC09-RZ 0 25 L3 0007.jpg

AC09-RZ Fuji Electric Rotary Switch .jpg

FUJl AC series rotary switches offer a wide choice of output codes. They feature sliding Au-flashed contacts for high contact reliability. Inhibitor and parity check circuits guard against switch malfunctions caused by error signals. With only seven connections to make, these switches are an economical solution to multi position switching needs.

Electric Rotary Switch.jpg

FUJI switch.jpg

AC09-RZ features:

The protection of operator section meets the lP65 (lEC), so these switches can be used in oil-splash environments, such as on machine tool control panels.

A wide choice of output codes fits abroad range of applications.Available step angles are 15, 30, and360°/26 (13.85°). Real binary code, complementary binary code, and real gray code are available.

Switches are available with connectors or with lock rings for easy handling.

Stopper screw positions are user selectable.

Au-flashed contacts for high contact reliability.
