Festo 174399 SNCS-50 Swivel Flange for DSBC 50mm Cylinders

Festo 174399 SNCS-50 Swivel Flange for DSBC 50mm Cylinders

• Swivel flange SNCS-50
• Clevis flange SNCS-50
• SNCS-50 - Pneumatic systems
• FESTO Part number: 174399
• Mounting attachments for actuators
• Cylinder mounting parts and accessories
• for 50mm bore cylinder
• equivalent to SNCS50
INQUIRY

Festo 174399 SNCS-50 Swivel Flange for DSBC 50mm Cylinders

This Festo 174399 SNCS Series Swivel Flange SNCS-50, is for Use With DSBC Standards Based Cylinders, 50 mm Dia Piston, Die Cast Aluminum, 64mm Length.

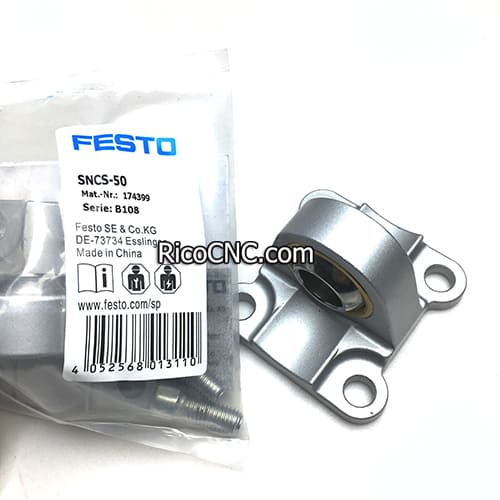

Swivel flange SNCS-50.jpg

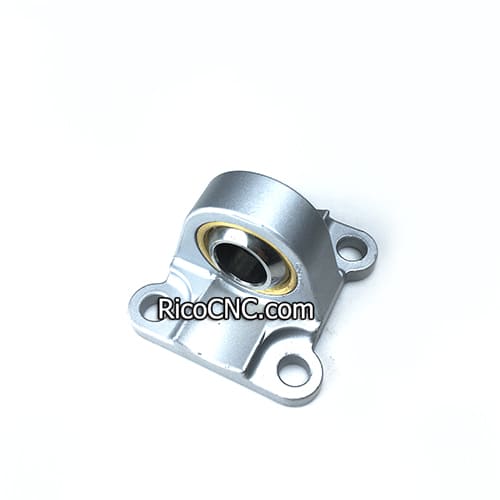

Clevis flange SNCS-50.jpg

Swivel flange SNCS-50 specifications:

Primary brand	Festo
Model number	SNCS -50
Main function	Clevis
Sub-range name	SNCS series
Bore size	for 50mm bore cylinder
Functions	Clevis flange
Material	Die-cast Aluminium mounting part Galvanized steel screws
Ambient air temperature for operation	-40°C...+150 °C
Chemical resistance	CRC Class 1 - Low-corrosion stress
Order code / Manufacturer SKU	174399
Equivalent to	SNCS50

A swivel flange for a cylinder is a component used in hydraulic or pneumatic systems to connect a cylinder to its mounting structure while allowing for rotational movement.

SNCS-50 - Pneumatic systems .jpg

FESTO Part number 174399.jpg

Swivel flanges are commonly used in industrial machinery, automotive systems, and various hydraulic or pneumatic equipment where precise positioning and movement are required.

for 50mm bore cylinder .jpg
