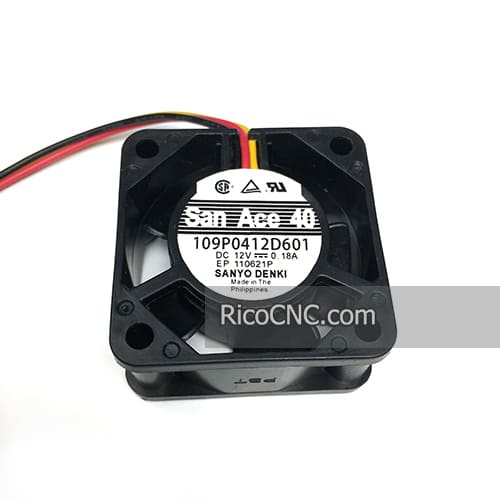

109P0412D601 SANYO DENKI DC Axial Fans
This is a DC Axial Fans from SANYO DENKI, it s is 109P Series Axial Fan, the model number is 109P0412D601.
Specifications of 109P0412D601 SANYO DENKI DC Axial Fans:
| Type: | DC Fan |
| Power Rating : | 2.16(W) |
| Product Length (mm): | 40(mm) |
| Product Depth (mm): | 40(mm) |
| Product Height (mm): | 20(mm) |
| Voltage Rating: | 12 |
| Operating Frequency: | Not Required(Hz) |
| Bearings: | Ball |
| Fan Rotation: | Clockwise |
| Line Current: | 0.18(A) |
| Noise Level: | 42(dB) |
| Speed (Nominal): | 11000(rpm) |
| Operating Input Voltage Range: | 7 TO 13.8 |
| Operating Temp Range: | -20C to 60C |
| Operating Temperature (Max): | 60C |
| Operating Temperature (Min): | -20C |
| Termination: | Lead Wire |
| Housing Material: | Plastic |
| Mounting Style: | Flange |
There are also other fans supplied here:
KAKU KA1725HA2BAT AC Axial Fan
FH175G0000 Fan 175x62mm 230V Centrifugal Fan for Heat Dissipation
NMB A90L-0001-0515 R AC200-220V Spindle Motor Fan for Fanuc
San Ace 40WF 9WF0424S604B Cooling Fan 4-Pin Female Connector for FANUC A90L-0001-0566 A
SANYO DENKI SanAce 60WF 9WF0624H707A for FANUC Fan Motor A90L-0001-0567 B
Sanyo SanAce40 109P0424H3013 40x40x28MM 24V 0.08A Inverter DC Fan
Panaflo OH23CD FBK08T24H DC24V 0.17A 80x80x15mm Cooling Fan for FANUC A90L-0001-0422
etc.
RicoCNC can supply many of original NMB MAT, Panaflo, Sanyo Denki fans, Please let us know the models you want, we will give our best price and service.
