KL2622 Beckhoff Bus Terminal PLC Module

This is a Bus Terminal PLC Module from Beckhoff, the model number is KL2622.

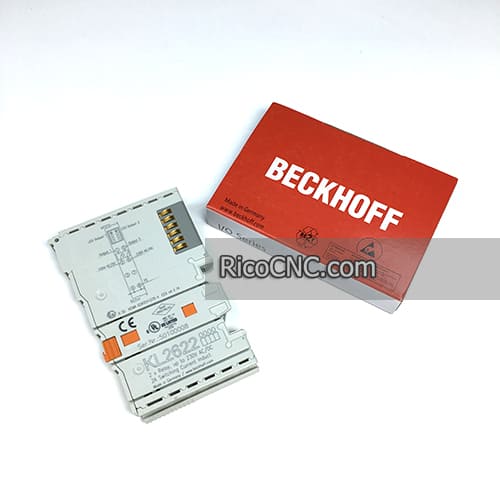

KL2622 Bus Terminal.jpg

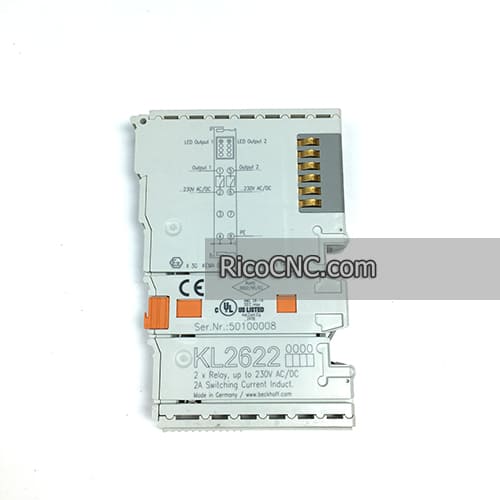

Beckhoff KL2622.jpg

The KL2622 output terminal has two relays, each with a single contact, and can be used to switch devices requiring mains power and operating at up to 230 V AC. The relay contacts of the KL2622 are potential-free and not connected to the power contacts.

KL2622 2 RELAY OUTPUTS.jpg

Technical data of KL2622 Beckhoff Bus Terminal PLC Module:

Technical data	KL2622
Number of outputs	2 x make contacts
Nominal voltage	230 V AC/30 V DC
Load type	ohmic, inductive, lamp load
Max. output current	5 A per channel
Switching current	5 A AC/DC (ohmic)/2 A AC/DC (inductive)
Ohmic switching current	5 A AC/DC
Inductive switching current	2 A AC/DC
Minimum permitted load	10 mA at 5 V DC
Lamp test, electronic ballast	max. 5 A starting current (4 x 58 W)
Electrical isolation	500 V (K-bus/field potential)
Current consumption K-bus	typ. 85 mA
Bit width in the process image	2 outputs
Operating cycles mech. (min.)	2 x 107
Operating cycles electr. (min.)	1 x 105 (5 A/30 V DC)
Special features	potential-free contacts
Operating/storage temperature	-25…+60°C/-40…+85°C
Relative humidity	95%, no condensation
Pluggable wiring	for all KSxxxx Bus Terminals
