0822010621 Compact Short Stroke Pneumatic Cylinder KHZ-DA-020-0010-M

0822010621 Compact Short Stroke Pneumatic Cylinder KHZ-DA-020-0010-M

• AVENTICS 0822010621
• KHZ-DA-020-0010-M
• Aventics Air Cylinders 0822010621
• AVENTICS Short-stroke cylinder
• Pneumatic Cylinder
• 0822010621 Compact Cylinder
• Series KHZ
• 0 822 010 621 cylinder
INQUIRY

0822010621 Compact Short Stroke Pneumatic Cylinder KHZ-DA-020-0010-M

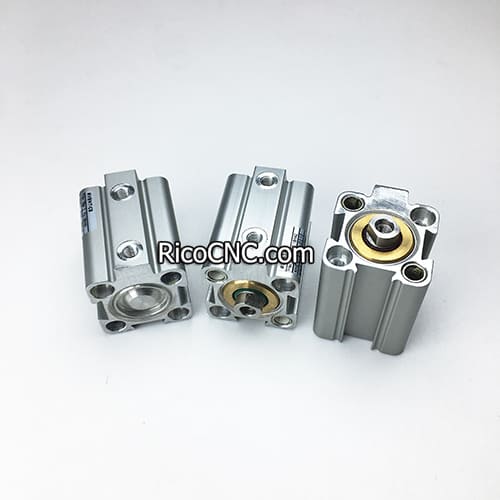

This is Aventics compact cylinder, series KHZ, KHZ-DA-020-0010-M, model number is 0822010621. It is a pneumatic cylinder with short stroke, 20mm diameter piston, double action with magnetic piston.

AVENTICS 0822010621 compact cylinder Features:

• Ø 8 mm ... 100 mm

• Stroke max. 100 mm

• For applications with a short and narrow installation spac

• Non-rotating piston rod via front plate

Aventics Air Cylinders 0822010621.jpg AVENTICS Short-stroke cylinder.jpg

KHZ-DA-020-0010-M short-stroke cylinder specifications:

Piston Ø	20 mm
Piston rod	non-rotating
Stroke	10 mm
Functional principle	Double-acting
Cushioning	elastic
Magnetic piston	with magnetic piston
Scraper material	Polyurethane
Pressure for determining piston forces	6,3 bar
Retracting piston force	148 N
Extracting piston force	198 N
Working pressure min.	1 bar
Working pressure max	10 bar
Min. ambient temperature	-25 °C
Max. ambient temperature	80 °C
Ports	M5
Impact energy	0.08 J
Min. medium temperature	-25 °C
Max. medium temperature	80 °C
Medium	Compressed air
Max. particle size	50 µm
Oil content of compressed air min.	0 mg/m³
Oil content of compressed air max.	5 mg/m³
Piston rod	Stainless Steel
