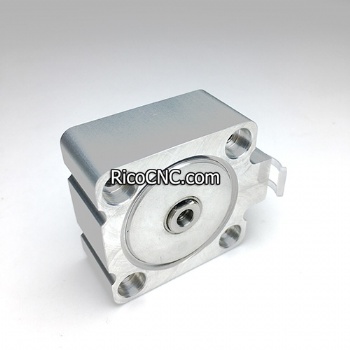

4-035-02-0068 cylinder 40mm X 50mm.jpg

4035020068 4-035-02-0068 Compact Air Cylinder 0822406350 Aventics Pneumatic Cylinder for Homag Edge Banding



This pneumatic cylinder is a short stroke Bosch Air Cylinder, part number is 0822406350, KHZ-SA-040-0005-O. It can be used for Homag edge banding machine, and Homag part number is 4035020068 or 4-035-02-0068.

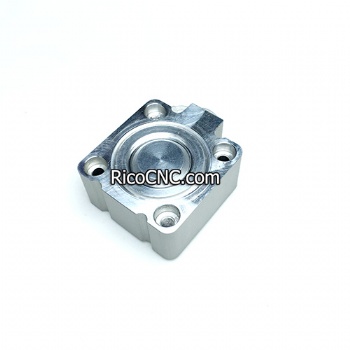

4035020068 Short Stroke Cylinder .jpg

4-035-02-0068 Short Stroke Cylinder Material:

Cylinder tube

Aluminum, anodized

Piston rod

Stainless steel

Piston

Nitrile rubber

Front cover

Brass Aluminum

End cover

Aluminum

0822406350 Aventics Pneumatic Cylinder.jpg

0822406350 Compact Air Cylinder specification:

Compact Cylinder Type

Standard

Bore Diameter

40 mm

Stroke

5 mm

Piston Action

Single-Acting Spring Return

Mounting Type

Basic

Rod Type

Single Rod

Rod Size / Thread

M6 Female ISO

Port Size

1/8 BSPP

Options Included

Spring Return

Operating Pressure Range

1.3 to 10 bar

Push Force at 100 psi

792 N

Pull Force at 100 psi

26 N

Operating Temperature Range

-25 to +80 °C

Overall Length

27 mm

Overall Width

54.5 mm

Overall Height

62.5 mm

Maximum Operating Pressure

+10 bar

Minimum Operating Pressure

+1.3 bar

Port Gender

Female

Port Thread Standard

BSPP

Rod Gender

Female

Bosch Air Cylinder 40mm X 50mm.jpg

Bosch Compact Air Cylinder 0822406350.jpg

There are also other AVENTICS cylinders:

4035020002 4-035-02-0002 Short Stroke Cylinder 0822406340 Aventics

4-035-01-0006 Homag 4035010006 Pneumatic Aventics 0822121008 Profile Cylinder

Aventics 0822123005 Profile Air Cylinder

Homag 4-035-01-0788 BOSCH REXROTH 0822010511 AVENTICS Pneumatic Air Cylinder

New REXROTH BOSCH Hydraulic Cylinder R7472002051

etc.

Aventics KHZ-SA-040-0005-O.jpg

RicoCNC can supply various of Homag/Brandt spare parts, please check our website, if you can not find, please contact us for more information!
