Products > Homag Spare parts

4008380425 4-008-38-0425 Power Relay 24V DC PT570024

4008380425 4-008-38-0425 Power Relay 24V DC PT570024

• 4-008-38-0425 Relay
• 4008380425 Intermediate Relay PT570024
• PT570024 relay
• 4008380425 power replays
• Relay 24 V DC 6A/250 V 4-008-38-0425
• RELAY GEN PURPOSE 4PDT 6A 24V
• PT SCHRACK
• SCHRACK - TE CONNECTIVITY
INQUIRY

4008380425 4-008-38-0425 Power Relay 24V DC PT570024

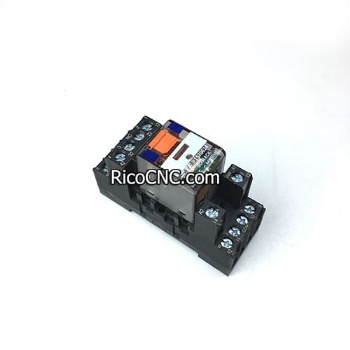

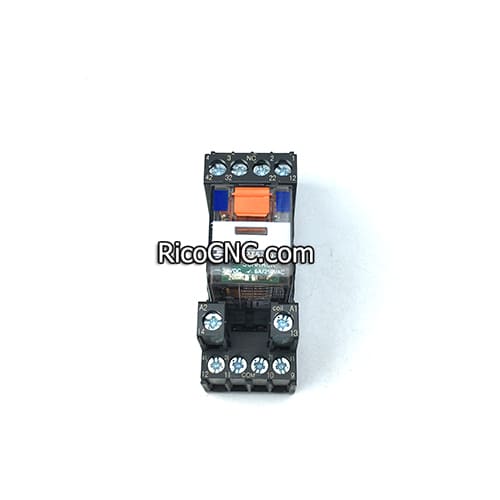

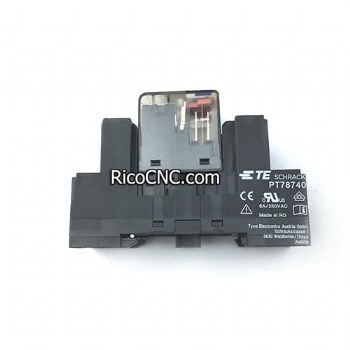

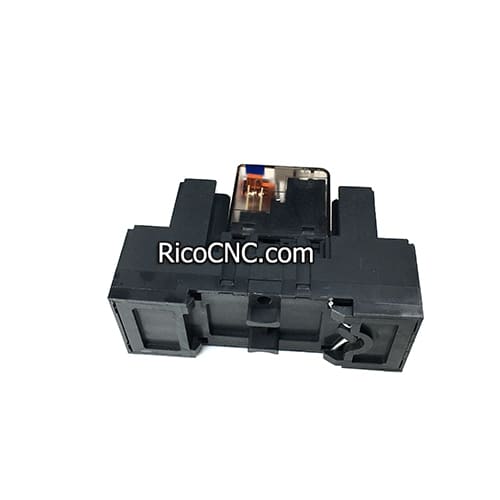

This is a power relay made by SCHRACK - TE CONNECTIVITY, the model number is PT570024, Homag part number is 4008380425 or 4-008-38-0425.It is a Power Relay, Industrial Panel Plug-In, Monostable, DC, 741 mW Coil Power Rating DC, 777 Ω Coil Resistance, SCHRACK Miniature Relay PT series.

PT SCHRACK.jpg 4008380425 power replays.jpg

4008380425 Intermediate Relay PT570024 specification:

Contact Configuration:	4PDT
Coil Voltage:	24VDC
Contact Current:	6A
Product Range:	PT Series
Relay Mounting:	Socket
Coil Type:	Non Latching
Contact Voltage VAC:	240VAC
Relay Terminals:	Quick Connect
Relay Type:	Power - General Purpose
Contact Material:	Silver
Coil Resistance:	777ohm
Approvals & Standards:	UL, VDE

4008380425 Intermediate Relay PT570024.jpg

The PT series from TE Connectivity are miniature industrial relays for general purpose applications. These relays are used in control, Industrial, Power Management, Automation & Process Control, Consumer Electronics, Automotive applications.

Relay 24 V DC 6A250 V 4-008-38-0425.jpg

Rico supplies various HOMAG spare parts, such as tool forks, tool holders, pressure rollers, chain pads, vacuum pods, sensors, glue pots, motors and drivers, etc.
