SCM AC Servo Motor 0001335099G SGMGH-09DCA-YG21

SCM AC Servo Motor 0001335099G SGMGH-09DCA-YG21

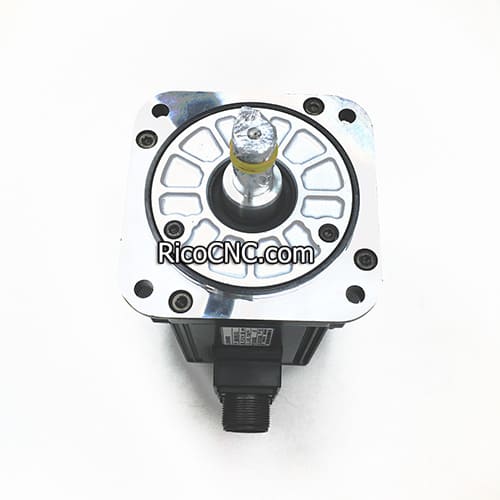

This is SGMGH Sigma II series AC servo motor, SGMGH-09DCA-YG21 or SGMGH09DCAYG21.The SGMGH had a medium-inertia rotor and incorporated the segmented stator design, which dramatically reduced overall size. It is with 5.3 AMP, 400 V, 5.39 NM and 1500 RPM. It always use for SCM machine, SCM SERVOMOTOR BRUSHLESS part number is 0001335099G.

SGMGH Sigma II servo motor Features:

Time Rating: Continuous

Insulation: Class F

Vibration: 15mm or less

Withstand Voltage: 1500VAC

Insulation Resistance: 10MW minimum at 500VDC

Enclosure: Totally-enclosed, self-cooled IP67 (except for shaft opening)

Ambient Temperature: 0 to 40ºC

Ambient Humidity: 20 to 80% (non-condensing)

Rated Speed: 1500rpm

Maximum Speed: 0.45 to 7.5kW (3000rpm), 11 and 15kW (2000rpm)

Excitation: Permanent magnet

Drive Method: Direct drive

Mounting: Flange-mounted

There are also many other servo motors from YASKAWA and use for SCM Machines:

SERVOMOTOR BRUSHLESS SGMGH-09DCA-YG25

Item code: 0001330367A

SERVOMOTOR BRUSHLESS SGMGH-09DCA-YG21

Item code: 0001335099G

SERVOMOTOR BRUSHLESS SGMGH-09DCA2H

Item code: 0001335093D

SERVOMOTOR BRUSHLESS SGMGH-13DCA6H

Item code: 0001335108G

SERVOMOTOR BRUSHLESS SGMGH-13DCA-YG18

Item code: 0001330366H

SERVOMOTOR BRUSHLESS SGMGH-30DCA-YG12

Item code: 0001335094F

SERVOMOTOR BRUSHLESS SGMPH-04DAA61D

Item code: 0001335117F

SMOT 5.39NM 3000RPM BRUSH SGMGV-09DDA6H YASKAW

Item code: 0001335143A

BRUSHLESS MOTOR NM5,39 G3000 SGMGH-09DCA6F

Item code: 0099000046G

Etc.

Please contact Rico for more information!
