VCBL-K1 125x75x50 L Longways Vacuum Suction Cups 10.01.12.00230 for Schmalz 1-circuit Console

VCBL-K1 125x75x50 L Longways Vacuum Suction Cups 10.01.12.00230 for Schmalz 1-circuit Console

• VCBL-K1 125x75x50 L vacuum suction cup
• Schmalz 10.01.12.00230 vacuum pods
• VCBL-K1 125x75x50 L longway vacuum block
• Vacuum block for Schmalz 1-circuit console
• Vacuum block VCBL-K1 longways for narrow parts
• Dimensions (L x W): 125 x 75 mm
• Height H: 50 mm
• Suction cup 125X75 H= 50 1-circle longways
INQUIRY

VCBL-K1 125x75x50 L.jpg

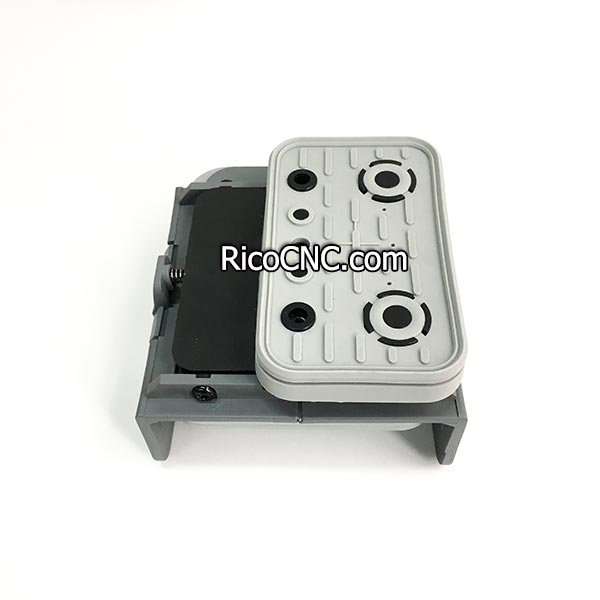

VCBL-K1 125x75x50 L Longways Vacuum Suction Cups 10.01.12.00230 for Schmalz 1-circuit Console

This 10.01.12.00230 vacuum pod is a height of 50mm 1 circuit consoles vacuum suction pod. VCBL-K1 125x75x50 L is the longways vacuum block for narrow parts clamping, used with Weeke/Homag and other PTP CNC machine centre with pod and rail table.
longways vacuum suction cups.jpg

VCBL-K1 125x75x50 L 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum suction cups work with Homag, Weeke, CMS, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Format 4, Anderson and many others console table. Woodworking pod and rail vacuum cup support for fixing workpieces to the console table for workpiece clamping.
125x75x50 L vauum pods.jpg

10.01.12.00230 vacuum pod size:
Top Dimensions (LxW): 125 x 75 mm
Height H: 50 mm
Bottom Dimensions (LxW): 140 x 115 mm

The 10.01.12.00230 vacuum cup comes with a complete entire set.
Also, the top rubber pads 4-011-11-0079, 10.01.12.00011 and bottom vacuum pads 10.01.12.00228 are available as replacements.

VCBL-K1 125x75x50 vacuum pods.jpg

VCBL-K1 125x75x50 Q crossways vacuum suction cups 10.01.12.00211 vacuum blocks we also have for supply.

A range of replacement cups and rubber pads for Homag, Weeke, Biesse, SCM and other brands woodworking machines for sale here. RicoCNC is a reliable source for CNC & Woodworking machine spare parts, welcome to contact us.
