Flat Grid Table Vacuum Cups for Woodworking Matrix Table CNC Routers

A lot of CNC router users own flat table CNC, as it is fast and good for big sheet nesting, also cheaper than pod and rail CNC machines. But if you are machining custom parts made out of solid wood that requires machining on the side and bottom of the part, to process the side of the part with horizontal boring, machining, cutting, etc. A flat table can't perform those functions easily.

grid table cnc vacuum cups.jpg

But now our flat table vacuum cups will allow your shop to do solid wood work or edge detail by raising the material off of the table. You can use your matrix table CNC router as a pod and rail CNC router.
matrix vacuum block.jpg

How to Use Flat Grid Table Vacuum Pods:
1, Use a rubber gasket seals a zone for the grid table pod bottom.

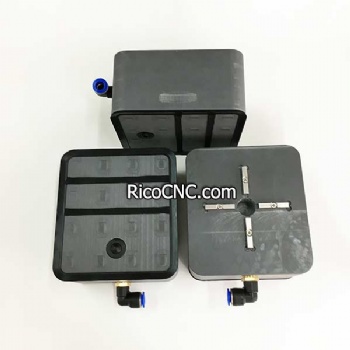

2, Put the grid table pods on the matrix table sealing zoon, there are iron strips to locate the vacuum pod. (The bottom iron strip width have 6mm and 8mm for choose for your grid table grooves)
3, Connect the CNC vacuum pods with the vacuum pump with 8mm diameter air pipes.
Optional: you can put the vacuum pod on your flat table vacuum hole, plug up the vacuum pod air pipe, so no need for the extra air pipe.
4, When the vacuum pump works, the vacuum pod clamps the flat table and the workpiece both tightly.
cnc grid pods.jpg

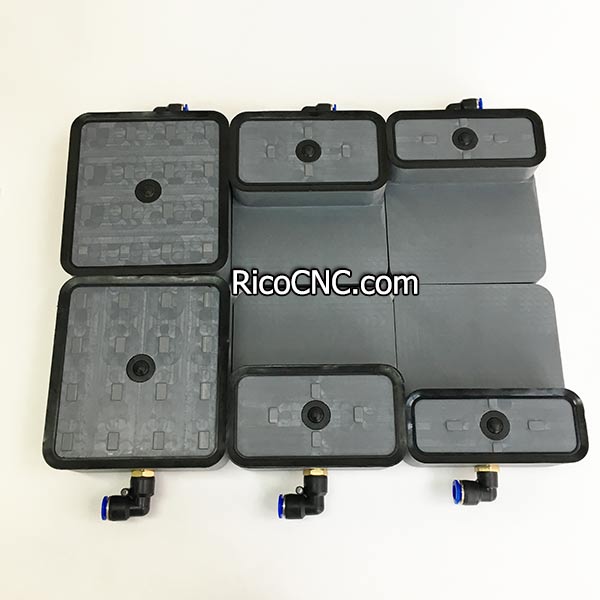

The top vacuum suction size has 3 models:
• Full size flat table vacuum cups 145x132mm
• Half size flat table vacuum pods 75x132mm
• 1/3 size flat table vacuum blocks 54x132mm
The height of the vacuum pods can be customized, the minimum is 29mm tall.

cnc matrix vacuum pods.jpg
48mm and 74mm tall pods are widely used, like Biesse Rover CNC vacuum pods.
grid vacuum pod.jpg

Maximize the flexibility of your flat table CNC router with matrix table cups. Imagine a vacuum pod/cup for your cnc router where there is nothing to break. It holds material down stronger, lasts longer, does not need the foam gasket, and all this at a more affordable cost than your factory cup.
Matrix table vacuum pods.jpg

RicoCNC supplies a range of CNC vacuum pods (CNC vacuum hold down block devices for CNC router vacuum table) for nearly all woodworking CNC routers, such as Biesse, SCM, Homag, Weeke, Anderson, Omnitech, Busellato, CMS, CR Onsrud, Format 4, Hendrick, Heian, HolzHer, Komo, Multicam, SCMI Morbidelli, Northwood, KDT, SNX, SCM Routech, Masterwood, Thermwood, Bacci, Excitech, Nanxing, & many more.

Grid vacuum suction pods.jpg

Spare parts for CNC router vacuum pods also are available here. If you need any CNC vacuum cups or accessories, welcome to contact us.
