VCBL-K1 125x75x50 R Longways Schmalz 1-circuit Console Vacuum Suction Cups for CNC

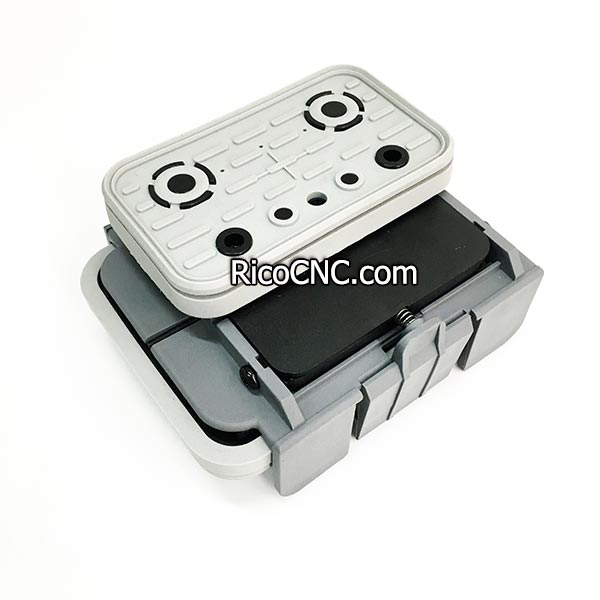

This longways vacuum pod is a height of 50mm 1 circuit consoles vacuum suction pod which suction pad at right side. VCBL-K1 125x75x50 R is the longways vacuum block for narrow parts clamping, used with Weeke/Homag and other PTP CNC machine centre with pod and rail table.


suction pod VCBL-K1.jpg

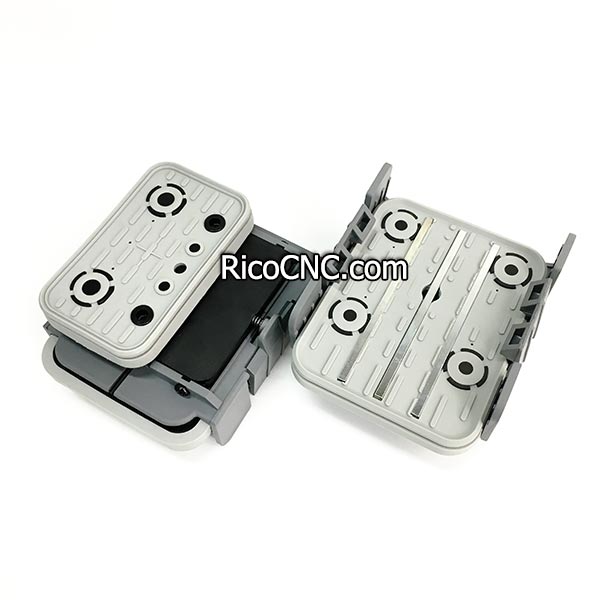

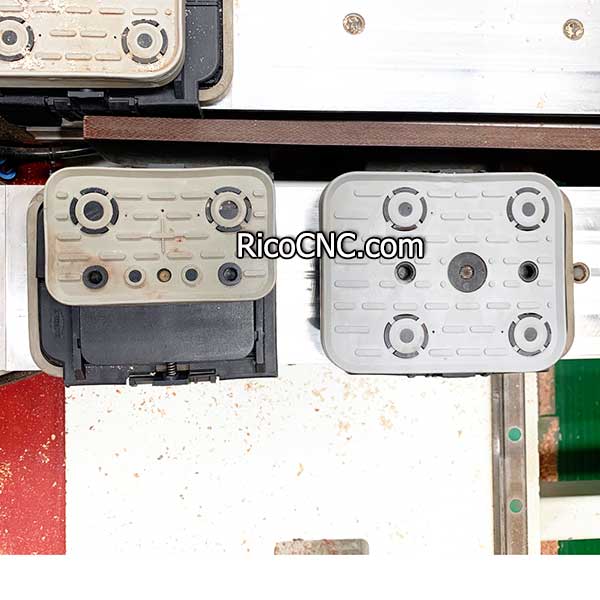

VCBL-K1 125x75x50 R 1-circuit beams from Schmalz (1 row of valves along the beam) vacuum suction cups work with Homag, Weeke, CMS, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Format 4, Anderson and many others console table. Woodworking pod and rail vacuum cup support for fixing workpieces to the console table for workpiece clamping.
vacuum cnc suction.jpg

VCBL-K1 125x75x50 R Vacuum Pod Size:
Top Dimensions (LxW): 125 x 75 mm
Height H: 50 mm
Bottom Dimensions (LxW): 140 x 115 mm
VCBL-K1 125x75x50 R.jpg

The VCBL-K1 125x75x50 R vacuum cup comes with a complete entire set.
Also, the top rubber pads 4-011-11-0079, 10.01.12.00011 and bottom vacuum pads 10.01.12.00228 are available as replacements.

schmalz vacuum block.jpg

VCBL-K1 125x75x50 L longways vacuum suction cups 10.01.12.00230 and 4011110368 VCBL-K1 125x75x50 Q crossways vacuum suction cups 10.01.12.00211 are available here.
1 circuit console vacuum.jpg

A range of replacement vacuum cups and rubber pads for Homag, Weeke, Biesse, SCM and other brands woodworking machines for sale here. RicoCNC is a reliable source for CNC & Woodworking machine spare parts, welcome to contact us.
