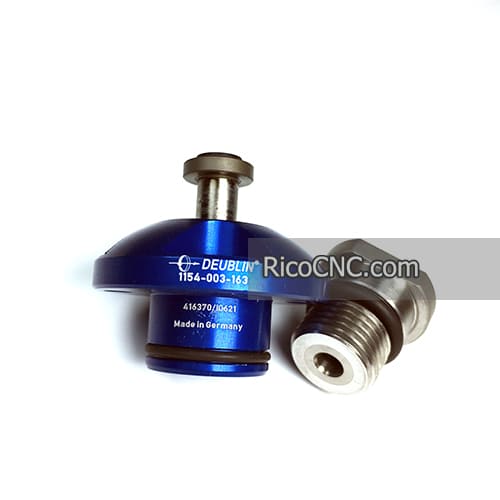

1154-003-163 DEUBLIN.jpg

DEUBLIN 1154-003-163 Rotary Union Compact Brgless AutoSense for Doosan


This M16×1.5 LH compact AutoSense union offering a single passage for coolant or MQL. The model number is 1154-003-163. The AutoSense technology changes automatically between closed seals and controlled leakage operation in response to the kind of media.

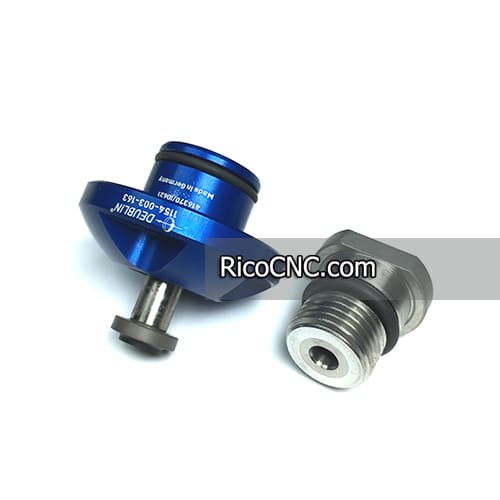

1154-003-163 Rotary Union.jpg

Deublin Rotary joint for Doosan.jpg

The union also features a non-rotating element with stroke (axial movement) of up to 13.5mm to track drawbar movement even when the union is mounted on the clamping device. It is a full-flow design with no obstructions to trap swarf or debris. Lastly, the union has balanced mechanical seals made from silicon carbide for a long life even under difficult operating conditions.

Deublin Union M16x1.5 LH.jpg

High Speed Rotating Union.jpg

1154-003-163 DEUBLIN features:

• Single passage for coolant or MQL

• Patented AutoSense™ technology changes automatically between closed seals and controlled leakage operation in response to the kind of media

• Non-rotating element has "stroke" (axial movement) of up to 8 mm, to track drawbar movement even when the union is mounted on the clamping device

• Full-flow design has no obstructions to trap swarf or debris

• Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions

• Anodized aluminum housing resists corrosion

Doosan rotary union.jpg

1154-003-163 Rotary Union specification:

MediaMQL, Coolant, Air
Rotor ConnectionM16x1.5 LH, 17.993 mm pilot
Housing Connection0.786
Air Max. Flow608 l/min
Air Max. Pressure10 bar
Air Max. Temperature71 °C
Coolant Max. Flow24.3 l/min
Coolant Max. Pressure140 bar
Coolant Max. Temperature71 °C
MQL Max. Flow608 l/min
MQL Max. Pressure10 bar
MQL Max. Temperature71 °C

M16x1.5 LH.jpg
