Bi1-EH04-AP6X TURCK Inductive Sensor

• Bi1-EH04-AP6X TURCK
• Order number: 4609540
• TURCK Inductive Sensor
• BI1-EH04-AP6X Inductive Sensor
• Turck 4mm Barrel Sensor
• BI1EH04AP6X Sensor
• Bi 1-EH03 series sensor
• TURCK 4609540
INQUIRY

Bi1-EH04-AP6X TURCK Inductive Sensor

This TURCK's 4 mm barrel inductive sensor is embeddable with a potted-in cable. Outputs are available in 3-wire DC NPN and 3-wire DC PNP. The model number is BI1-EH04-AP6X 4609540.

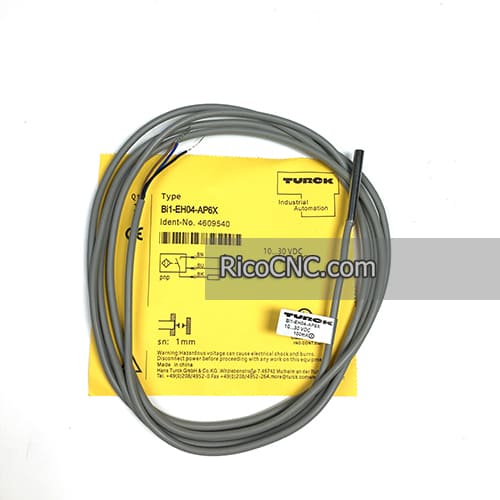

Turck 4mm Barrel Sensor.jpg

Bi1-EH04-AP6X TURCK Inductive Sensor technical data:

Design	Smooth barrel
Construction size	Ø 4 mm
Rated switching distance	1 mm
Mounting conditions	Flush
Operating voltage	10…30 VDC
Output function	NO contact, PNP
Switching frequency	3.0 kHz
Electrical connection	Cable
Cable length	2.0 m
Housing material	Stainless steel, 1.4305 (AISI 303)
Ambient temperature	-25…+70 °C
Protection class	IP67

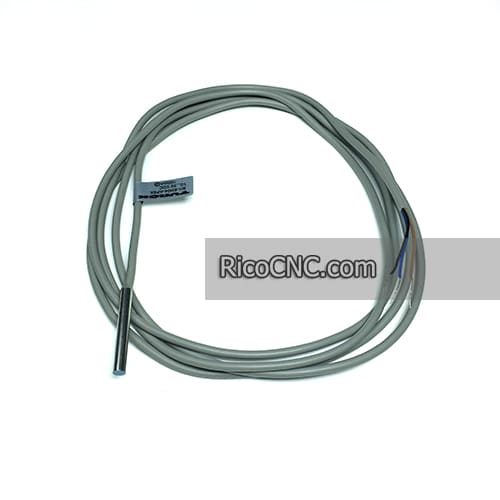

TURCK Inductive Sensor.jpg

Bi1-EH04-AP6X TURCK Inductive Sensor Features:

• Choice of Barrel with Potted-In Cable, M8 (picofast®), M12 (eurofast®), Quick-Disconnect or Terminal Chamber

• Short-Circuit and Overload Protected

• Reverse Polarity and Wire Break Protection

• LED Indicator: Output Energized (Additional Power on LED, Terminal Chamber Versions)

• Normally Open Output Specifications:

• Environment Rating: NEMA 1, 3, 4, 6, 13; IP67

• Operating Temperature: -13°F to +158°F

• Voltage Drop: 1.8 VDC at Max. Load Current
