BT50-45° External Thread Grippers for BT 50 Pull Stud Collet

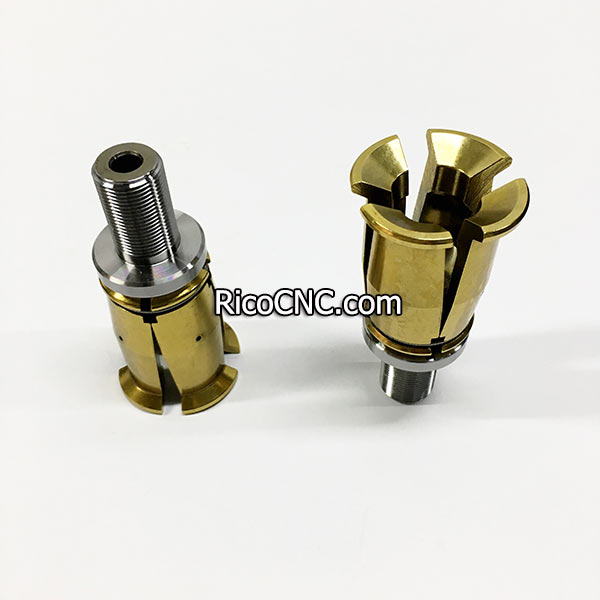

This MAS pull stud gripper is ACROW BT50-45° external thread (Outer Screw) gripper. There are 4pcs clamping segments have an optimal load balancing. The BT50 tool gripper are an approved serial product for automatic tool changing, widely used for BT50 auto tool changer spindles. This is spindle tool clamping pull stud gripper is a normal spare part for VMC and HMC machines.
BT50-45° external thread pull stud gripper features:
100% brand new & high quality
Brand: ACROW (made in Taiwan)
Order No: 9106H-21
Total length: 108mm
Clamp length: 66mm
Inner thread: M22x1.5P
Matching pull bolt: 45 degree
Flange outer diameter: 39mm
Petal pull claws: 4pcs
FS: (Max. Clamping Force): 35 kN
MA: (Max. Tightening Torque): 160Nm
Grippers have the held position function.
Special treated segments can prevent abrasion.

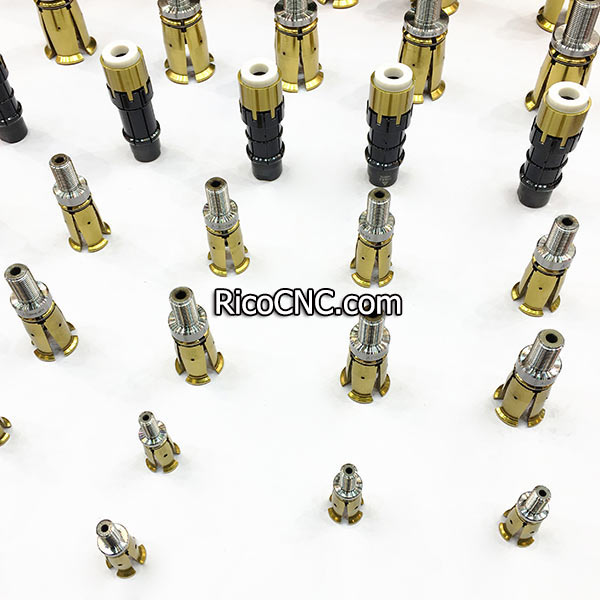

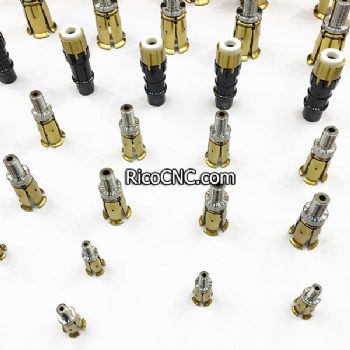

RicoCNC supplies a range of CNC accessories and tools for machine maintenance. Chumpower, TALONS, ROYAL, BERG gripper are supplied here.
If any needs welcome to contact us.
