HOMAG 4-011-04-0639 4011040639 AVENTICS Bosch 0820037202 Pneumatic valve

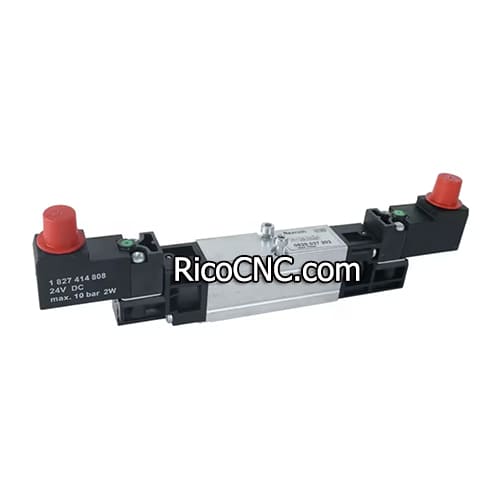

This is AVENTICS 0820037202 CD02-3/2CC-024DC pneumatic valve 2 X 3/2-WEGE 2.2-10. This air control valve can be used on Homag machine part. Homag part number is 4-011-04-0639 or 4011040639.
4011040639 AVENTICS 0820037202.jpg

Specifcication of AVENTICS 0820037202 directional valve for Homag:

Brand	AVENTICS
Model	0820037202
Nominal flow	Qn450 l/min
Switching principle	2x3/2
Version	NC/NC
Compressed air connection output	VDMA 02 base plate
Working pressure min.	2.2 bar
Working pressure max	10 bar
DC operating voltage	24 V
Voltage tolerance	DC-10% / +10%
Manual override	without detent
Electrical connection	2
Electrical connection type	Plug
Electrical connection size	ISO 15217, form C
Sealing principle	Soft Seal
Pilot	Internal
Standards	ISO 15407-1
Pilot valve width	15 mm
Valve type	Spool valve, positive overlapping
Blocking principle	Base plate principle, multiple
Connection type	Plate connection
Compressed air connection input	VDMA 02 base plate
Compressed air connection, exhaust	VDMA 02 base plate
Compressed air connection pilot exhaust	VDMA 02 base plate
Power consumption DC	2W
Frame size	18 mm
Control pressure min.	2.2 bar

A range of AVENTICS valve for Homag machines are available:

AVENTICS 0821002003

RicoCNC can offer a range of Homag woodworking machine accessories.
If you are looking for spare parts for Homag machines, please don’t hesitate to contact us!
