BT30N-ER20-070 Parfaite BT30N Tool Holder without Notches on Side

  • • BT30N-ER20-070 tool holder
  • • Parfaite (Taiwan) toolholders
  • • NBT30-ER20-70L toolholder
  • • BT30N tool holder without notches on side
  • • Collet size: ER20
  • • With BT30 45 degree pull stud and collet nut
  • • Balanced: 30,000rpm, G2.5
  • • Runout precision <0.005mm
  • INQUIRY


BT30N-ER20-070 Parfaite BT30N Tool Holder without Notches on Side

This CNC tool holder is BT30N-ER20-070 tool holder without notches on side. It is newest Taiwan Parfaite BT30N tool holder.
BT30N-ER20-070 tool holder comes with retention knobs and collet nut, widely used for CNC machining center, woodworking CNC routers, robot tool changer.

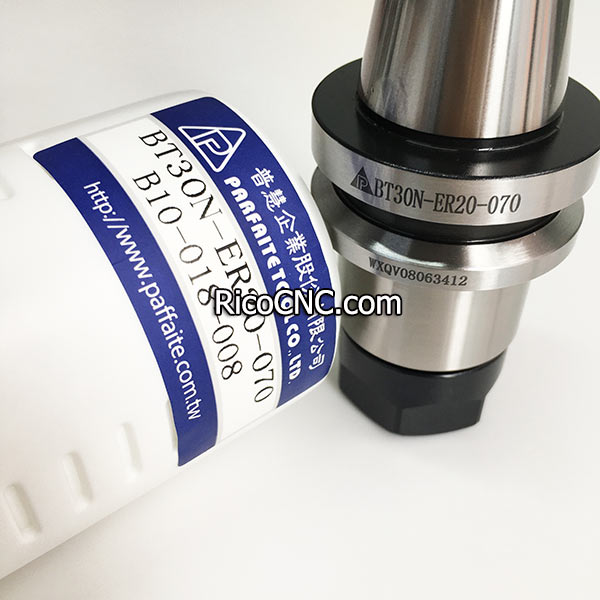

BT30N-ER20 tool holder.jpg

BT30N tool holder there isn’t two notches on either side of the holder. Balanced to G2.5 30,000rpm. Runout precision <0.005mm. It is suitable for high speed working, better accuracy.
parfaite BT30N.jpg

As BT30N-ER20-060 not produced, and BT30N-ER20-070 tool holders also without the flat stage for a spanner to tighten, so you also need a BT30 tool holder tighten fixture.
BT30 without notch.jpg

BT30N-ER20-070 Tool Holder Features:
Without keyway
Brand Parfaite (Taiwan)
Collet chuck model: BT30N-ER20-070
BT30 tool changer collet Size: ER20
Material: 20CrMnTi
Balanced: 30,000rpm, G2.5
Complete with BT30 pull stud and collet nut
Application: Can be used on CNC milling machines with BT30 spindles.
All tool holders are provided with the pull stud and the nut.

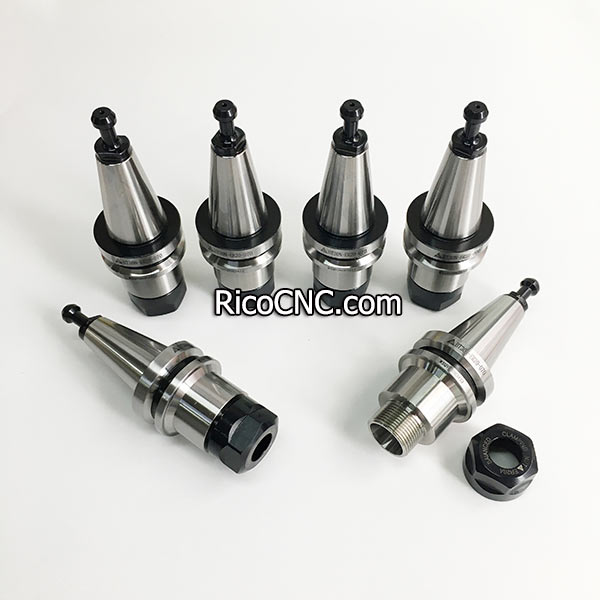

parfait tool cone.jpg

NBT30-ER32, NBT30-ER20-60L, BT30N-ER16-070, BT30N-ER20-070, BT30N-ER25-070, BT30N-HER16-070, BT30N-HER20-070, BT30N-HER25-070, BT30N-PFK10-060, BT30N-PFK16-060 tool holders also are available in stock for quick delivery
parfaite tool holder.jpg

RICOCNC is a global supplier of CNC machine accessories. You can find a comprehensive range of CNC parts and tools, such as CNC tool holder clips, CNC collets, collet nut, pull stud, CNC cutting tools, CNC suction blocks, edgebander replacements, beam saw accessories, etc.
BT30N tool holder.jpg

We know parts are very important for CNC machines. Keep some spare parts as replacements can reduce machine downtime and save cost. If you are looking forCNC spare parts, welcome to contact us. We ship worldwide.
