FESTO 159502 LRP Precision Pressure Regulator

FESTO 159502 LRP Precision Pressure Regulator

• FESTO 159502
• LRP-1/4-10
• Precision pressure regulator LRP-1/4-10
• Festo G 1/4 Pneumatic Regulator
• 159502 precision pressure regulator
• LRP Precision Pressure Regulator
• Compressed Air Prep Regulators
• FESTP Pneumatics
INQUIRY

FESTO 159502 LRP Precision Pressure Regulator

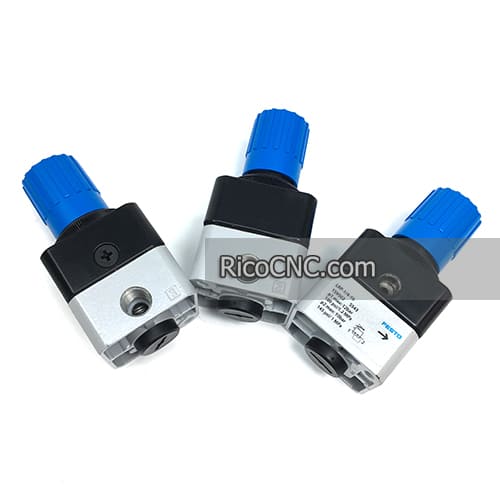

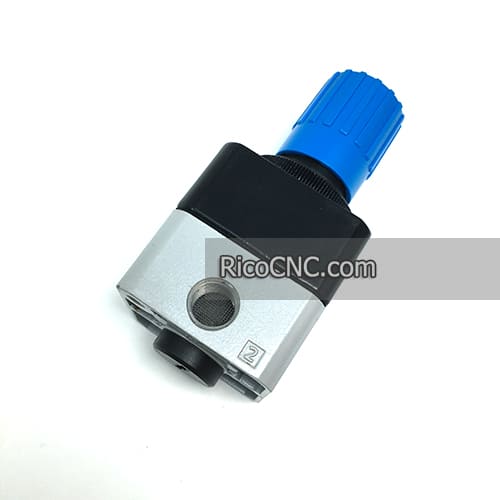

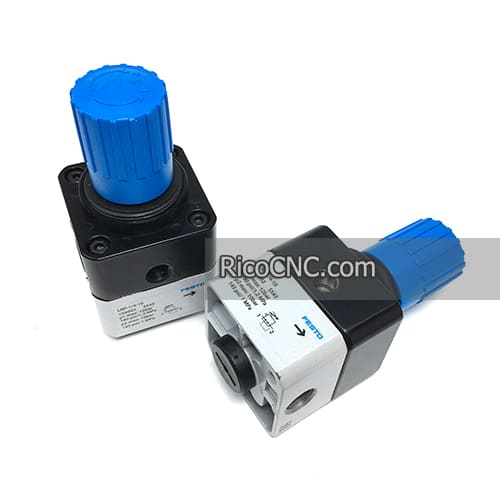

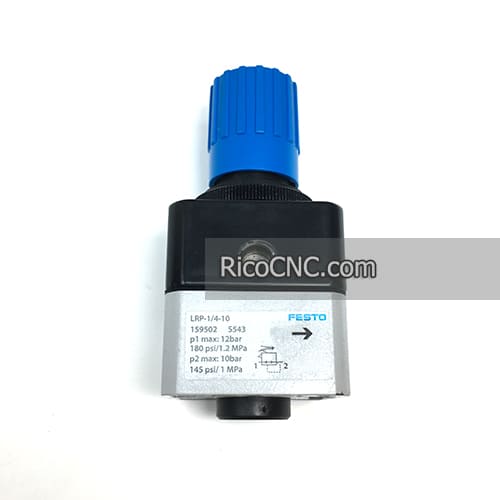

This is a Festo Pressure Regulator, part number is 159502, LRP-1/4-10. It is Precision, Series: LRP, 1/4 in Port, 2300 Lpm Flow Rate, 0.1 to 10 bar Pressure, -10 to 60 deg C, Die-Cast Aluminum.


FESTO 159502 Secifications:

Type	Precision
Series	LRP
Port Size	1/4 in
Flow Rate	2300 Lpm
Pressure Range	0.1 to 10 bar
Temperature Rating	-10 to 60 deg C
Material	Die-Cast Aluminum

Precision pressure regulator LRP-1:4-10.jpg

FESTO 159502 Pressure regulator features:

The precision pressure regulator controls operating pressure with a diaphragm pilot control, which acts upon the main seat and thus achieves improved regulating characteristics

Precision pressure adjustment possible both in static and dynamic applications

Pressure hysteresis of < 0.02 bars for flow rate characteristic curve

Good response characteristics during rapid alteration of supply pressure and flow rate

Supply pressure fluctuations are almost entirely compensated

Moderate corrosion stress

Festo G 1:4 Pneumatic Regulator.jpg
