AVENTICS 0820055051 HF03-LG Series Pneumatic Directional Valves

AVENTICS 0820055051 HF03-LG Series Pneumatic Directional Valves

This is a HF03-LG Series Pneumatic Directional Valves with 5/2 Single Solenoid, Externa Pilot, the model number is 0820055051.

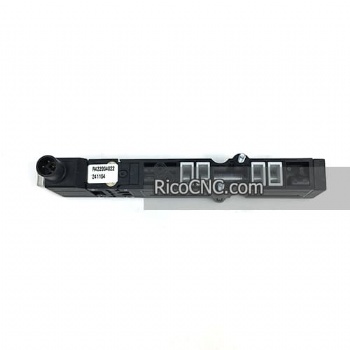

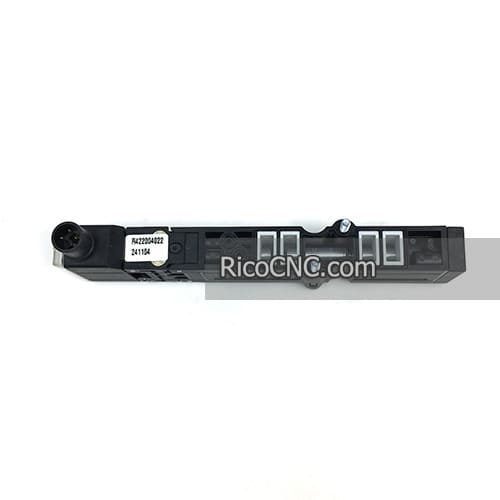

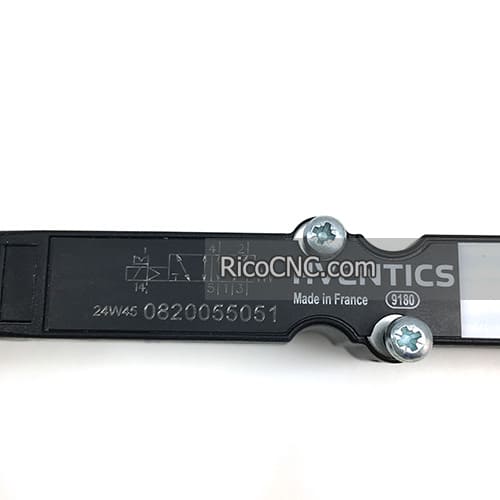

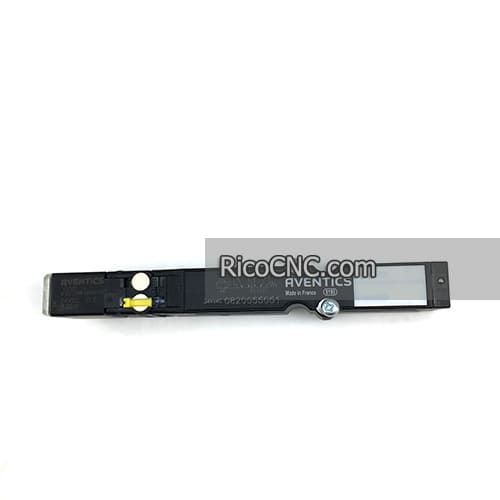

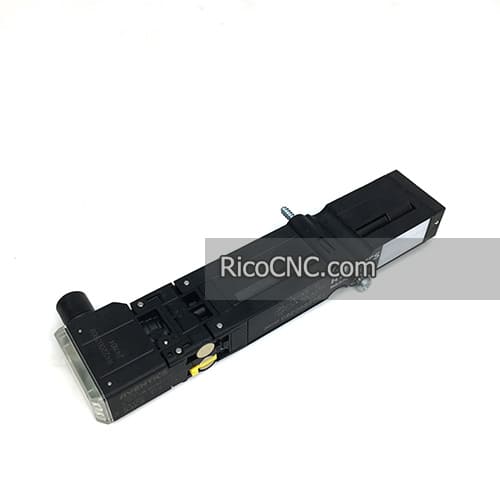

0820055051 Solenoid Valve.jpg

0820055051 Pneumatic valve specification:

Activation	Electrically
Nominal flow Qn	850 l/min
Switching principle	5/2
Working pressure min.	-0.9 bar
Working pressure max	10 bar
DC operating voltage	24 V
Voltage tolerance DC	-15% / +20%
Manual override	with detent 0820055052 without detent
Actuating control	Single Solenoid
Sealing principle	Soft Seal
Pilot	External
Certificates	UR (Underwriters Laboratories)
Pilot valve width	16 mm
Valve type	Spool valve, positive overlapping
Connection type	Plate connection
Return	With spring return
Blocking principle	Single base plate principle
Control pressure min.	2.5 bar
Control pressure max.	10 bar
Min. ambient temperature	0 °C
Max. ambient temperature	50 °C
Min. medium temperature	0 °C
Max. medium temperature	50 °C
Medium	Compressed air
Max. particle size	5 µm
