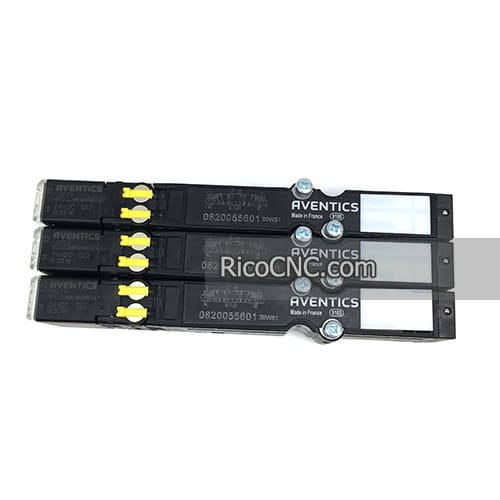

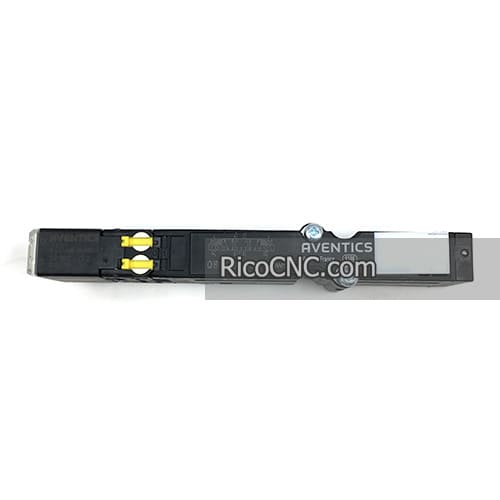

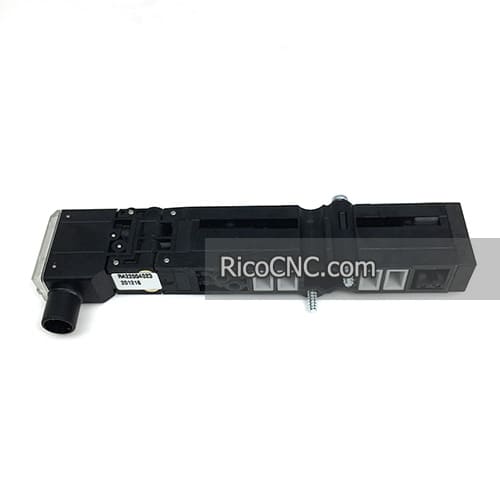

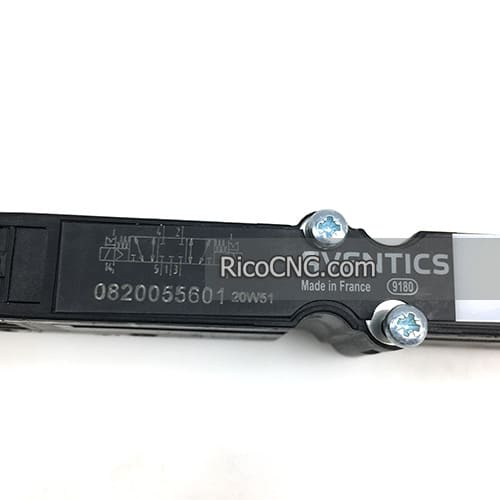

AVENTICS 0820055601 Series HF03-LG Directional Valve
This is a directional valve made by AVENTICS, the part number is 0820055601, it is AVENTICS Series HF03-LG.
AVENTICS 0820055601 valve specifications:
| Activation | Electrically |
| Switching principle | 5/3, closed center |
| Valve function | Closed Center |
| Manual override | with detent |
| Pilot | External |
| Nominal flow Qn | 850 l/min |
| Min. working pressure | -0.9 bar |
| Max. working pressure | 10 bar |
| Operational voltage | 24 V DC |
| Voltage tolerance DC | -0.75 |
| Sealing principle | 16 mm, Soft seal |
| Power consumption DC | 0.35 W |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 50 °C |
| Housing material | Polyamide fiber-glass reinforced |
AVENTICS 0820055601 valve Features:
• Modular design with up to 32 valves and 32 coils
• High flow rate with up to 850 l/min
• Pilot valve with 0.35 W per coil
• Optimized weight due to plastic base and end plates
• Direct mounting on assembly system profiles
• High connectivity through Multipol or Fieldbus connection
• Integrated fittings and all connections pointed in one direction
0820055052/0820055051/0820055102/0820055601/0820055501/0820055101 AVENTICS BOSCH REXROTH solenoid valves are also available.
Please contact us for more information!
