4035010461 4-035-01-0461 HOMAG Mini Cylinder ISO 6432 0822334507

4035010461 4-035-01-0461 HOMAG Mini Cylinder ISO 6432 0822334507

• 4035010461 cylinder
• 4-035-01-0461 HOMAG cylinder
• 0822334507 cylinder
• CYLINDER ISO 6432 MINI D=25 HUB=160 G1/8
• AVENTICS Mini cylinder 0822334507
• MNI-DA-25-0160-D-31-01-1-00-000-00
• HOMAG Mini cylinder
• HOMAG spare parts
INQUIRY

4035010461 4-035-01-0461 HOMAG Mini Cylinder ISO 6432 0822334507

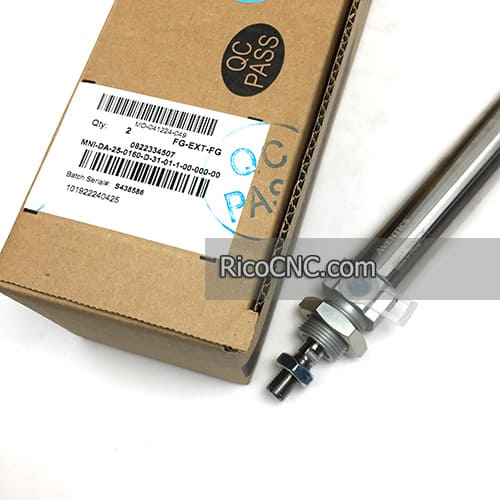

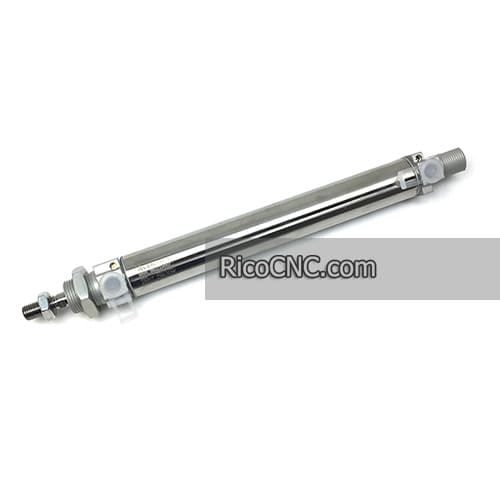

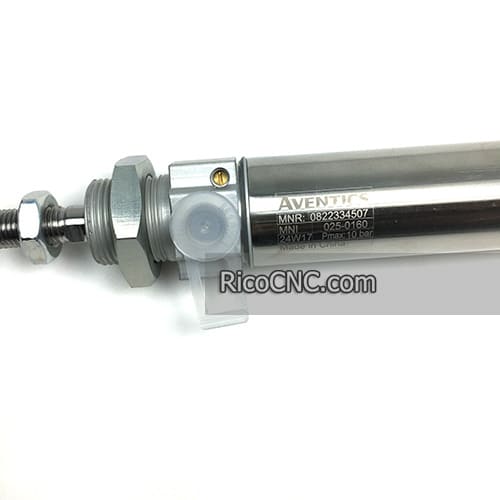

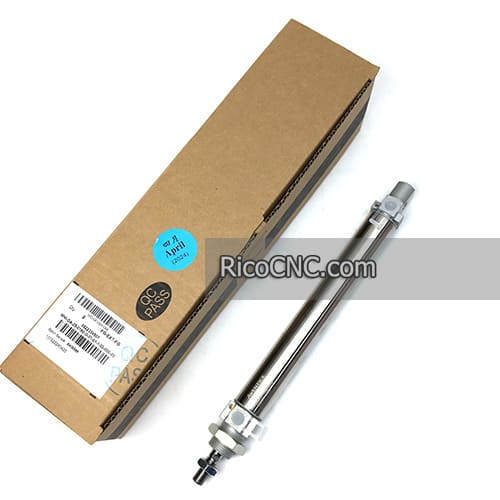

This is a mini cylinder for HOMAG machine, the Homag part number is 4035010461 4-035-01-0461. It is Aventics Mini cylinder ISO 6432 MINI D=25 HUB=160 G1/8, the model number is 0822334507, Series MNI-DA-25-0160-D-31-01-1-00-000-00.

4-035-01-0461 HOMAG cylinder.jpg

Specifications of 4035010461 cylinder:

Ambient Temperature Max (DegC)	80
Ambient Temperature Min (DegC)	-25
Working Pressure Max (bar)	10
Working Pressure Min (bar)	1
Pneumatic port	G 1/8
Stroke (mm)	160
Acting principle	Double Acting
Piston diameter	25 mm
Piston rod thread	25
Piston rod thread	M10x1

There are many Homag cylinders:

4035010658 4-035-01-0658 HOMAG Short-Stoke Cylinder AVENTICS KHZ Series 0822010823

1003654072 1-003-65-4072 Cylinder For Homag Woodworking Machines

1003650501 1-003-65-0501 HOMAG Cylinder for Beam Saw

4035012299 4-035-01-2299 Cylinder ISO6432 HUB280 Aventics 0822233081 for HOMAG Edge Banding Machine

4035020067 4-035-02-0067 Homag Cylinder AVENTICS Series KHZ Short Stroke Cylinder

etc.

RicoCNC can offer different brands of cylinders such as FESTO, SMC, Aventics, CKD, NORGREN, AIRTAC, IFM, Schneider, OMRON, etc. If you are looking for machine parts, please feel free to contact us!
