4011040267 4-011-04-0267 HOMAG Pressure Switch R412010718

• 4011040267 switch
• 4-011-04-0267 Homag pressure switch
• AVENTICS R412010718
• Pressure switch R412010718
• P/E Converter Adjustable G1/4 0.2-16 BAR
• HOMAG pressure switch
• AVENTICS Series PM1 Pressure switches
• Homag spare parts
INQUIRY

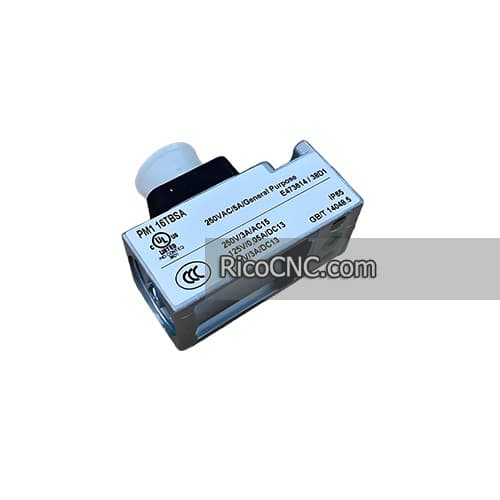

4011040267 4-011-04-0267 HOMAG Pressure Switch R412010718

This is a pressure switch for HOMAG machine, the Homag part number is 4011040267 4-011-04-0267. It is Aventics pressure switch, part number R412010718

4011040267 4-011-04-0267 HOMAG Pressure Switch R412010718 specification:

Function	change-over contact (mechanical)
Type	Diaphragm, spring loaded, adjustable
Operating pressure min	0.2 bar
Operating pressure max	16 bar
Compressed air connection type	Flange with O-ring
Compressed air connection	Ø 5x1,5
Min. ambient temperature	-20 °C
Max. ambient temperature	80 °C
Min. medium temperature	-10 °C
Max. medium temperature	80 °C
Medium	Hydraulic oil, Compressed air
Measurement	Relative pressure
Operating voltage DC, min.	12 V DC
Operating voltage DC, max.	125 V DC
Operating voltage AC, min.	12 V AC
Operational voltage AC, max.	250 V AC

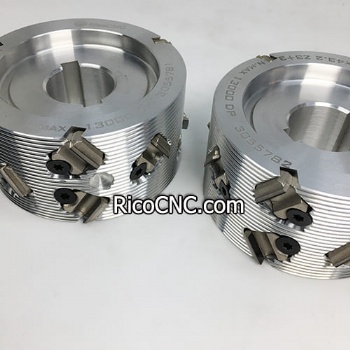

RicoCNC can offer a wide range of Homag Brandt edge bander parts, such as rubber pressure rollers, chain pads, PCD diamond cutter heads, and other components.

Please contact us for more information!
