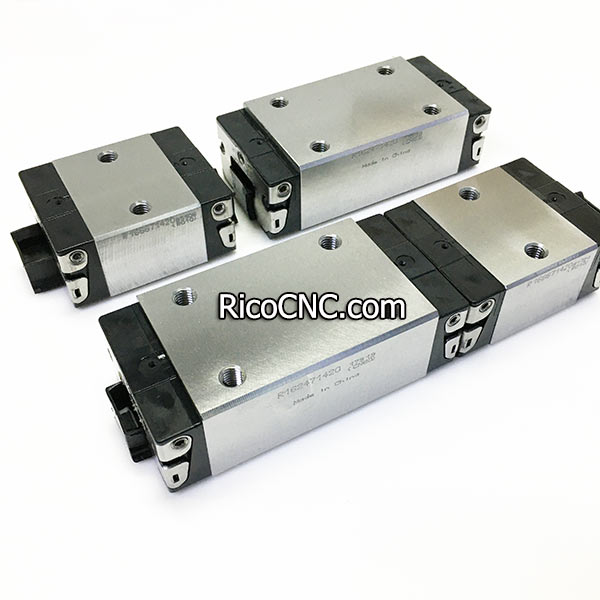

R162471420 KWD-030-SLH-C1-N-1 Bosch Rexroth Runner Block Linear Bearings


R162471420 KWD-030-SLH-C1-N-1 is the linear runner block from Bosch Rexroth, it is widely used in CNC machine and woodworking machines. Homag part no. 4-006-10-2676 (4006102676).


R162471420 Linear Block Specifications:
• Area of application: For restricted space in transverse direction and high rigidity requirements
• Higher rigidity than SLS
• Significantly reduced frictional oscillations and low friction level, particularly under external load
• Maximum precision
• Patented entry zone increases the travel accuracy up to a factor of six
• Ball runner block CS, made of Carbon steel

BRL-LT R166671420

Product Type

Ball Slide

Accuracy Class

Normal Grade

Preload

Yes

Lubrication
  /Lube Block Yes/No

Yes

Series

R1624

Section

Solid

Material

Steel

Shape

Rectangular Long

Inch - Metric

Metric

Other Features

Pre-Lubricated

Category - BDI

Profile Rail Carriage



Noun

Carriage

Keyword String

Ball Slide Linear

Long Description

Carriage; Ball Slide; Series   R1624; 119.7MM Overall Length; 60MM Overall Width; 38.35MM Overall Height;   28MM Rail Width; Solid; Normal Grade; Preload; Lubrication/Lube Block; Steel;   Rectangular Long

Overall Width

2.362 Inch | 60mm

Overall Height

1.51 Inch | 38.35mm

Overall Length

4.713 Inch | 119.7mm

Rail Width

1.102 Inch | 28mm

Weight /LBS

2.64554


Ball Slide Series R1624
The Model List of can be replaced (Same Size,Different Accuracy Class and Preload):

Size

Accuracy
  class

Part   numbers for runner blocks

up to   approx.
  10 um clearance

Preload
  0.02 C

Preload
  0.08 C

Preload
  0.13 C

30

P

-

R162471220

R162472220

R162473220

H

R162479320

R162471320

R162472320

-

N

R162479420

R162471420

R162472420

-

BOSCH REXROTH LINEAR R162471420
RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.
Bosch Rexroth Linear Motion

If any need of CNC machine parts, and Homag machine parts, welcome to contact us.

BOSCH REXROTH BALL RUNNER BLOCKS SLH

R166671420

R 166671420
