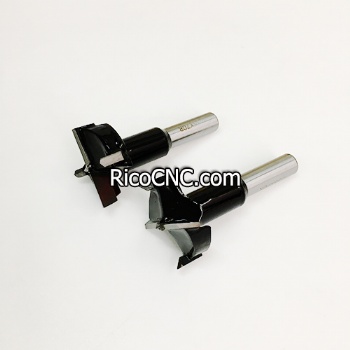

Carbide Tipped Hinge Boring Drill Bits for Cabinet Door Hinge Holes

These bits are tungsten carbide-tipped hinge hole boring. They are designed to bore a small recess into your workpiece for cup hinges to be installed.

door hinge drill bit.jpg

These hinge hole boring bits are widely used in drill presses or boring machines also can be used in routers.

Concealed hinge drill bit.jpg

These cabinet hinge drill bits are specially used on man-made timber, designed for repetitive drilling of blind holes when fitting concealed hinges in the kitchen, bedroom, bathroom cabinet doors or other furniture.
Cabinet door hinge hole drill bits.jpg

Here are the models for wood drilling bits with 10mm shank diameter, including left-hand and right-hand rotation.

Item No.

Direction

Drill Dia. (mm)

Overall Length (mm)

Shank Dia. (mm)

20*57L

Left Hand

20

57.5

10

20*57R

Right Hand

20

57.5

10

35*57L

Left Hand

35

57.5

10

35*57R

Right Hand

35

57.5

10

50*57L

Left Hand

50

57.5

10

50*57R

Right Hand

50

57.5

10

20*70L

Left Hand

20

70

10

20*70R

Right Hand

20

70

10

35*70L

Left Hand

35

70

10

35*70R

Right Hand

35

70

10

50*70L

Left Hand

50

70

10

50*70R

Right Hand

50

70

10


hinge boring bit.jpg

Make sure to review what diameter you need to fit your hinge.

Carbide tipped hinge boring bit.jpg

These door hinge drill bits are suitable for use on all natural woods and man-made materials such as blockboard, melamine faced boards, chipboard, and MDF and provide a long working life.
cabinet hinge drill bit.jpg

RicoCNC has a wide range of CNC woodworking tools and woodworking machine parts available. Welcome to contact us for more information!
