Premium Solid Carbide Triple 3 Flutes Compression Router Bits Up Down Cut Spiral End Mill Bits

Premium Solid Carbide Triple 3 Flutes Compression Router Bits Up Down Cut Spiral End Mill Bits

• Compression Premium Router Bit
• Solid Carbide Compression Spiral 3 Flute
• CNC Solid Carbide Compression Spiral 3 Flute
• Woodworking Router Bits
• Compression bits for cnc router
• 3 flutes compression router cutters
• 3 flute compression spiral router bit for CNC
• Router bit 3 flute carbide up & down spiral compression
INQUIRY

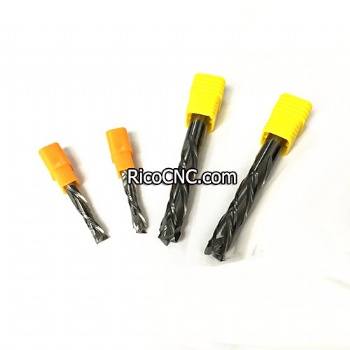

CNC Solid Carbide Compression Spiral 3 Flute.jpg

Premium Solid Carbide Triple 3 Flutes Compression Router Bits Up Down Cut Spiral End Mill Bits

The three flutes compression bits cut down from the top of the stock and up from the bottom of the stock simultaneously. The bit's unique and complex geometry forces the trimmed material to be compressed toward the center of the stock leaving behind a smooth & sharp finish free of chips on both the top and bottom edges.

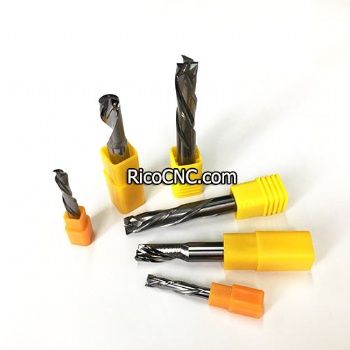

3 Flute Compression Spiral Router Bit for CNC.jpg

This bit can also be used for mortising projects that require a smooth bottom surface without sacrificing the mortised edge finish.

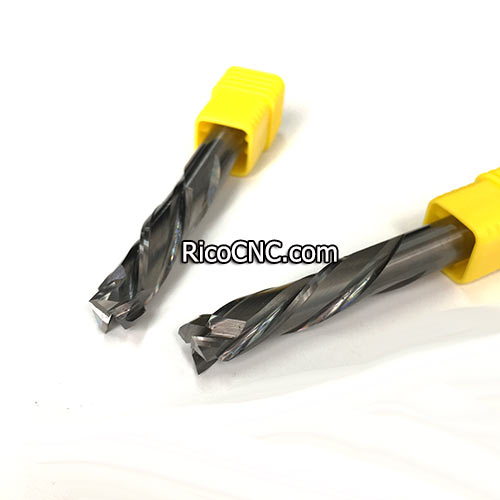

Solid Carbide Compression Spiral 3 Flute .jpg

Excellent for cutting:
Laminate
Laminated Plywood
Melamine
Melamine Particle Board
MDF/HDF
Oriented Strand Board (OSB)
Particle Board
Softwood/Hardwood
Veneered Plywood

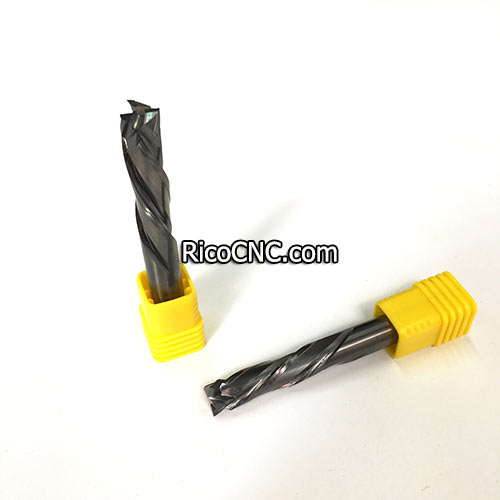

compression routers cutters.jpg

Triple Compression Router Bits Features:
1, A class solid carbide
2, Triple flutes
3, Spiral compression (up spiral and down spiral)
4, High speed balanced, up to 30000rpm
5, Best for achieving a smooth finish on laminate or veneer finish applications.
6, They are ideal for cutting, mortising, grooving, and dado.
7, Materials excellent for cutting: MDF/HDF, Laminate, Laminated Plywood, Melamine, Particle Board, Softwood/Hardwood, Veneered Plywood.
Solid Carbide Triple Compression Router Bits.jpg

3 Flute Compression Solid Carbide CNC Router Bits Sizes:
3 flutes compression Router Bits.jpg

Item No.	CED (mm)	CEL (mm)	SHK (mm)	OVL (mm)
A3FLX625	6	25	6	60
A3FLX628	6	28	6	70
A3FLX635	6	35	6	80
A3FLX825	8	25	8	60
A3FLX835	8	35	8	80
A3FLX1035	10	35	10	80
A3FLX1045	10	45	10	90
A3FLX1235	12	35	12	80
A3FLX1245	12	45	12	90
A3FLX1255	12	55	12	100
A3FLX12.35	12.7	35	12.7	80
A3FLX12.45	12.7	45	12.7	90
A3FLX12.55	12.7	55	12.7	100
A3FLX1645	16	45	16	100
A3FLX1655	16	55	16	110
A3FLX1675	16	75	16	130
A3FLX2075	20	75	20	150

three flute compression router bits.jpg

RicoCNC also can supply CNC router bits, such as: TCT nesting bits, Ball nose Carving Bits, Two Flutes Carbide Up-cut Spiral Bit, Single Flute Acrylic Cutting Bits: (specially for acrylic cutting), CNC Router Bits for Aluminium Cutting, 2 Flutes Compression Router Bits, 3 Flute Compression Solid Carbide CNC Router Bits, TCT double straight flutes router bits, Single Flute Spiral Router Bits, Straight Plunge Router Bits, 3 Flutes Chip-Breaker Spiral Bits, Conical ball nose router bits, Down Spiral Router Bit, PCD router bits, etc.
