Up Cut Single Flute Spiral CNC Router Bits Solid Carbide End Mill

Up Cut Single Flute Spiral CNC Router Bits Solid Carbide End Mill

• Single Flute Up Cut Spiral Router Bit
• Plastic Cutting Bits
• Upcut Spiral CNC Router Bits
• 1 Flute Upcut End Mill
• Polished to a mirror finish
• Up-Cut Spiral Solid Carbide CNC Router Bit
• One-flute Spiral End Mills
• Carbide Milling Cutter
INQUIRY

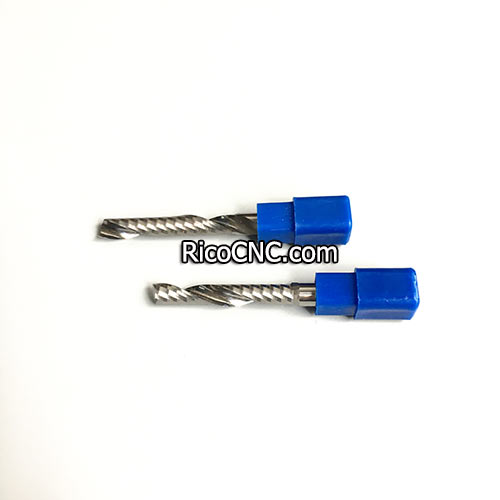

1 flute upcut router bits.jpg

Up Cut Single Flute Spiral CNC Router Bits Solid Carbide End Mill

This solid carbide up cut CNC router bit is a single flute spiral bit in woodworking router bits.
It features hundreds of profiles for mortising, edge forming, trimming, surface forming, and cabinetry/joinery in wood, plastic, and laminate.

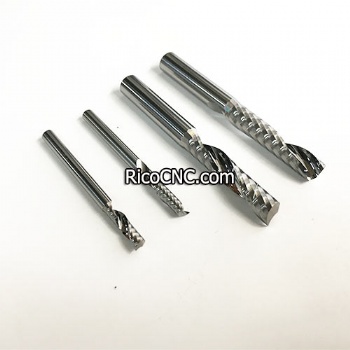

Single Flute Up Cut Spiral Router Bit.jpg

1 Flute Upcut Router Bits Features:
• 100% brand new and high quality;
• Made of high-quality material, durable and practical to use;
• Excellent combination of upper and lower blades, sharp cutting edge;
• High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
• No burrs for up and down spiral machining;
• High performance, improve the work efficiency, reduce cost;
• Could also suitable on below materials: MDF, particleboard, board with lagging, log, affixed to the skin panels, Acrylic, PVC, resin, plastic, chipboard, composite board, melamine board, Solid wood, native wood, plywood, lotus plate.
single flute up cut bits.jpg
Carbide Milling Cutter.jpg

Single Flute Upcut Spiral Router Bits:

Item No	CED (mm)	CEL (mm)	SHK (mm)	OVL (mm)
N1LX3.06	3.175	6	3.175	38
N1LX3.08	3.175	8	3.175	38
N1LX3.10	3.175	10	3.175	38
N1LX3.12	3.175	12	3.175	38
N1LX3.15	3.175	15	3.175	38
N1LX3.17	3.175	17	3.175	38
N1LX3.20	3.175	20	3.175	45
N1LX3.22	3.175	22	3.175	45
N1LX3.25	3.175	25	3.175	50
N1LX3.28	3.175	28	3.175	55
N1LX3.32	3.175	32	3.175	60
N1LX412	4	12	4	40
N1LX415	4	15	4	40
N1LX417	4	17	4	40
N1LX422	4	22	4	45
N1LX425	4	25	4	50
N1LX428	4	28	4	55
N1LX432	4	32	4	60
N1LX442	4	42	4	70
N1LX522	5	22	5	50
N1LX525	5	25	5	55
N1LX528	5	28	5	55
N1LX532	5	32	5	60
N1LX617	6	17	6	50
N1LX622	6	22	6	50
N1LX625	6	25	6	55
N1LX628	6	28	6	55
N1LX632	6	32	6	60
N1LX642	6	42	6	80
N1LX652	6	52	6	90
N1LX6.17	6.35	17	6.35	50
N1LX6.22	6.35	22	6.35	50
N1LX6.25	6.35	25	6.35	55
N1LX825	8	25	8	60
N1LX835	8	35	8	80
N1LX845	8	45	8	90
N1LX855	8	55	8	100
N1LX1025	10	25	10	60
N1LX1035	10	35	10	80
N1LX1045	10	45	10	90
N1LX1055	10	55	10	100
N1LX1075	10	75	10	120
N1LX1235	12	35	12	80
N1LX1245	12	45	12	90
N1LX1255	12	55	12	100
N1LX1275	12	75	12	120
N1LX12.35	12.7	35	12.7	80
N1LX12.45	12.7	45	12.7	90
N1LX12.55	12.7	55	12.7	100
N1LX12.75	12.7	75	12.7	130

Upcut Spiral CNC Router Bits.jpg
RicoCNC also can supply other CNC router bits, such as:
UP cut 3 flutes spiral router bits,
Ball nose Carving Bits,
Two Flutes Carbide Up-cut Spiral Bit,
Single Flute Acrylic Cutting Bits: (specially for acrylic cutting),
CNC Router Bits for Aluminium Cutting,
2 Flutes Compression Router Bits,
3 Flute Compression Solid Carbide CNC Router Bits,
TCT double straight flutes router bits,
Single Flute Downcut Spiral Router Bits,
Straight Plunge Router Bits,
3 Flutes Chip-Breaker Spiral Bits,
Conical ball nose router bits,
Down Spiral Router Bit,
PCB router bits, etc.
