4-008-61-0730 Homag 4008610730 Wenglor UM55PCV2 Fiber Optic Cable Sensor

This sensor is original WENGLO UM55PCV2 fiber optic cable sensor. It can be used on Homag KAL 310, 326 edgebanders. Homag part number is 4008610730 or 4-008-61-0730.

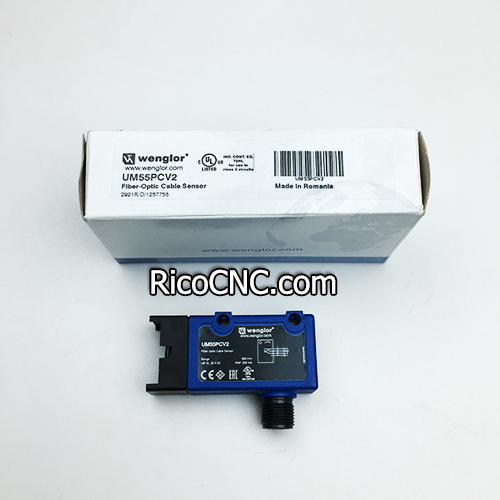

WENGLO optic sensor UM55PCV2.jpg

These reflecting fiber-optic key UM55PCV2 PN are equipped for use with glass fiber optic cables but can be used with or without one. The transmitter and receiver are located in a single housing. The sensor evaluates transmitted light reflected from the object and the output is switched as soon as an object passes the selected range. Bright objects reflect more light than dark objects, and can thus be recognized from greater distances.

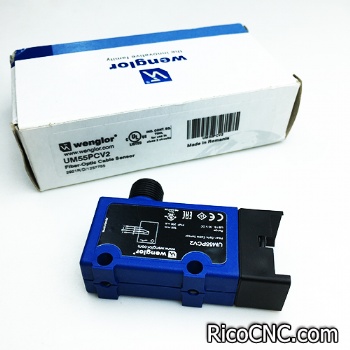

UM55PCV2 sensor.jpg

Technical data of WENGLO optical reflective switch UM55PCV2 PNP 500mm

Range

500 mm

Switching Hysteresis

< 15 %

Light Source

Infrared Light

Wavelength

880 nm

Service Life (T = +25 °C)

100000 h

Max. Ambient Light

10000 Lux

Opening Angle

12 °


UM55PCV2 Electrical Data

Supply Voltage

10...30 V DC

Current Consumption (Ub = 24 V)

< 40 mA

Switching Frequency

1 kHz

Response Time

500 µs

Temperature Drift

< 10 %

Temperature Range

-25...60 °C

Switching Output Voltage Drop

< 2,5 V

PNP Switching Output/Switching Current

200 mA

Residual Current Switching Output

< 50 µA

PNP Contamination Output/Switching Current

50 mA

Short Circuit Protection

yes

Reverse Polarity Protection

yes

Overload Protection

yes

Protection Class

III

Wenglor UM55PCV2 Fiber-Optic cable sensor.jpg

UM55PCV2 Mechanical Data

Setting Method

Potentiometer

Housing Material

Plastic

Full Encapsulation

yes

Degree of Protection

IP67

Connection

M12 / 1, 4-pin


Output

Contamination Output

yes

PNP NO/NC switchable

yes

Wenglor UM55PCV2.jpg

RicoCNC can offer other models of WENGLOR sensors and Homag woodworking machine parts. If any needs for woodworking machine spare parts, please feel free to contact me.
