FW-DB01 Replaces NF-DB01 Sensor Cable Fiber Amplifier BRF-N Special Supporting Fiber

This is FW-DB01 is a replacements of OPETX NF-DB01 Optical Fiber Cable 100% for Amplifier BRF-N.

FW-DB01 Features:
•Line of Synthetic optical fibers.
•Fiber optic diffuse coaxial M6 Threaded.
•The detection range is from 10mm without reflective and depends on the power of the amplifier that is connected to generate more range of light.
•The fiber is 2 meters long.
•The detection head is metallic threaded M6, includes cutter to adjust its length.
•It is a fiber that is compatible at input with almost all standard amplifiers of all brands.

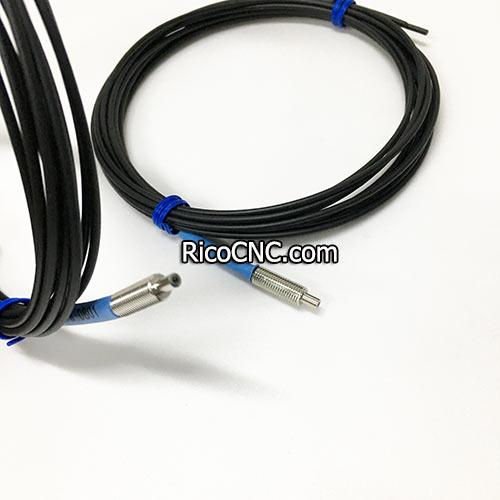

Sensor Cable .jpg

Specifications:

Series

NF/FW

Key Characteristics

Thread Mount

Sensing Mode

Diffuse   Coaxial

Key Attributes

Axial   Sensing

Lens Compatible

Not   Compatible With Add-On Lens

Mounting Body Style

M6

Mounting Dimension

M6 x 15mm

Fiber Cable Feature

SUS Body   includes Tightening Nuts and Lockwasher

Fiber Cable Bend Radius

R25

Cuttable / Non-Cuttable

Cuttable

Fiber Length

2 meter

Fiber Core

Coaxial

Temperature Rating

-40 to +70°   C

Includes

Fiber Cutter

Item Weight

0.50 lbs per   EA

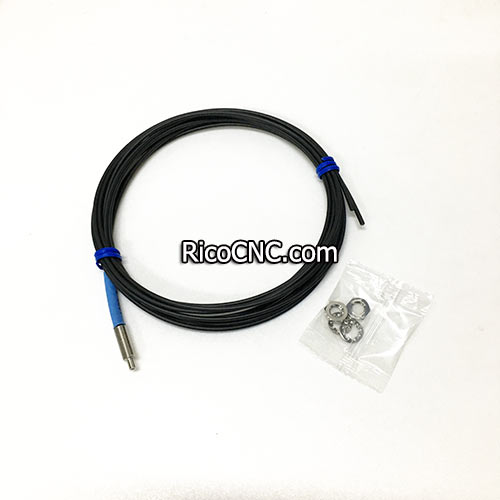

Fiber Optic Cables.jpg
We can also supply wide range of CNC spare parts, CNC cutter bits, and automation parts.

Welcome to contact us if any inquires!
