VCBL-K2 130x30x100 Q Vacuum Block for Schmalz 2-circuit Console for Homag Weeke

This vacuum block is VCBL-K2 130x30x100 Q vacuum pod. It can replace Schmalz 10.01.12.00854 and Busellato 68 780 010 000 suction block. This vacuum unit is for double-circuit console Schmalz and especially for clamping narrow workpieces.
VCBL-K2 130x30x100 Q.jpg

These VCBL-K2 130x30x100 Q suction cups are widely used in Homag, Weeke, and Busellato CNC machining centers.

Busellato 68780010000.jpg

Here is the dimension of 130x30mm vacuum cup:

Upper rubber suction plate Length x Width: 130 x 30 mm
Height H.100 mm

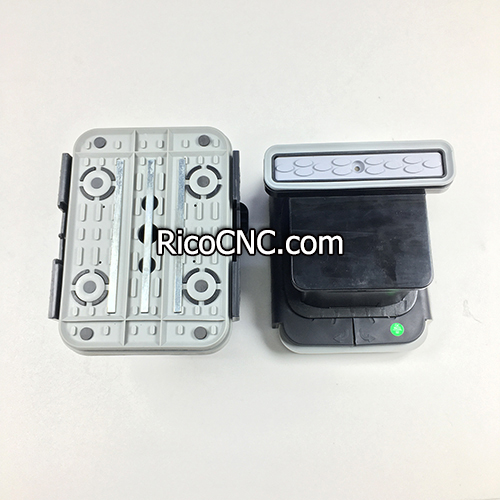

Bottom rubber suction surface length x width: 160 x 115
VCBL-K2 vacuum blocks 130x30.jpg

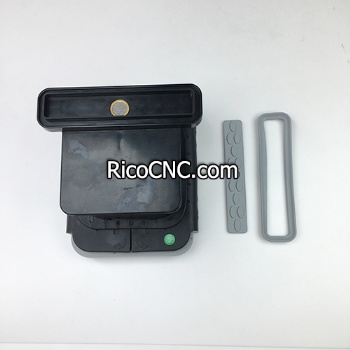

The top and bottom rubber are replaceable.

Top rubber seals: 130x30mm, 4011110249

Sealing frame 10.01.12.00804 .
Top rubbing suction rubber 10.01.12.00805 .
Lower rubber pad bottom suction plate 160x114mm, 4-011-11-0340, 4-011-11-0191.

suction blocks height 100mm.jpg

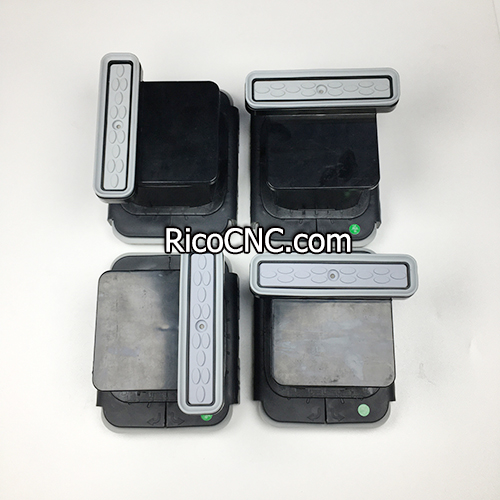

VCBL-K2 130x30x100 L 10.01.12.00855 vacuum suction blocks are also available here.
10.01.12.00854 vacuum pods.jpg

The only difference between #10.01.12.00854 and #10.01.12.00855 is the orientation of the vacuum pod.
VCBL-K2 130x30x100 Q vacuum block.jpg

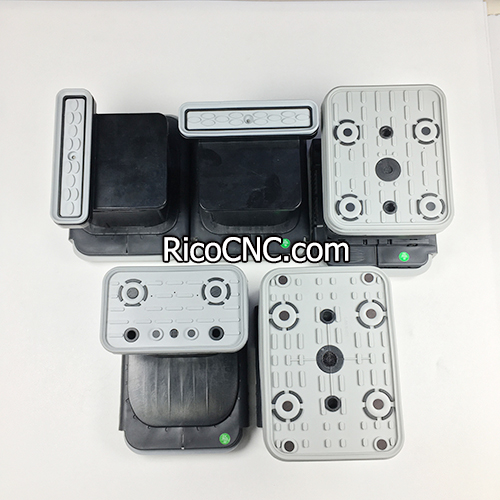

RicoCNC carries a range of vacuum blocks for CNC machining centers. If you are looking for CNC vacuum pods, Welcome to contact us!

130x30x100 suction cup.jpg
