10.01.12.00951 Schmalz Vacuum Suction Cup VCBL-K2 125x75x100Q Crossways for CNC

  • • Schmalz 10.01.12.00951 vacuum suction cup
  • • VCBL-K2 125x75x100Q vacuum pods
  • • 100mm tall vacuum block
  • • Suction cup 125x75x100 Schmalz
  • • Vacuum block VCBL-K2 100mm height crossways for narrow parts
  • • Dimensions (L x W): 125 x 75 mm
  • • Height H: 100 mm
  • • Bottom rubber seal 160x115, 2-circuit console
  • INQUIRY

VCBL-K2 125x75x100Q.jpg

10.01.12.00951 Schmalz Vacuum Suction Cup VCBL-K2 125x75x100Q Crossways for CNC

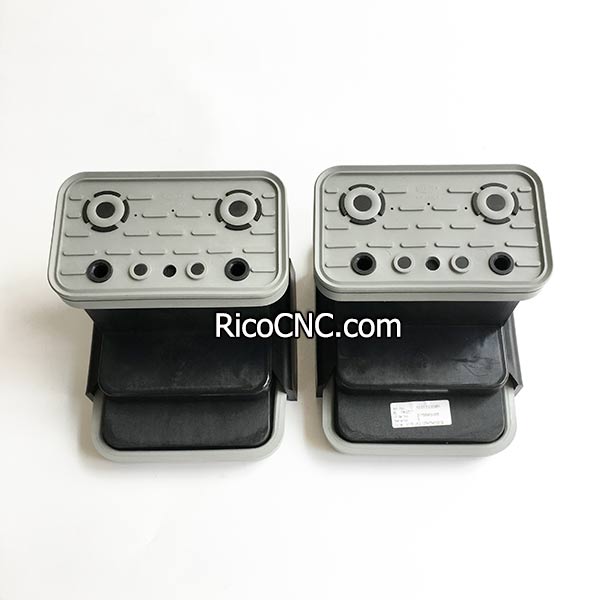

This 10.01.12.00951 vacuum pod is the original Schmalz 100mm height 2-circuit consoles vacuum suction cup, Schmalz article No. 10.01.12.00951, has been replaced by 10.01.12.02979. VCBL-K2 125x75x100 Q crossways for narrow parts, used with Felder Format 4 and other PTP CNC routers with pod and rail table. And it is compatible with the Homag / Weeke original 100mm tall vacuum blocks 2-056-17-0930.

VCBL-K2 125x75x100 Q 2-circuit beams from Schmalz (2 rows of valves along the beam) vacuum suction cups work with Homag, Weeke, CMS, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Format 4, Anderson and many others console table. It is used on CNC machining centers for fixing workpieces.
vacuum suction cup.jpg

10.01.12.00951 vacuum pod size:
Top Dimensions (LxW): 125 x 75 mm
Height H: 100 mm
Bottom Dimensions (LxW): 160 x 115 mm
vacuum block VCBL-K2.jpg

The 10.01.12.00951 vacuum cup comes with a complete entire set.
Also, the top rubber pads 10.01.12.00011, 4-011-11-0079 and bottom vacuum pads 10.01.12.00922 are available as replacements.
125x75x100mm vacuum.jpg

Alternative OEM numbers:
Weeke: 4-011-11-0073, 4-011-11-0106
Homag: 4-011-11-0073
Busellato: 68780003 000
Reichenbacher: 547270
Masterwood: VN 000020, VN 000023
IMA Klessmann: 093 091, 10 586 087
Schmalz article No.: 10.01.01.00846, 10.01.01.01272, 10.01.12.00410, 10.01.12.00706, 10.01.01.01344, 10.01.12.00951, 10.01.01.01386, 10.01.12.01022, 10.01.12.00709, 10.01.12.01192, 10.01.12.00876
schmalz vacuum block.jpg

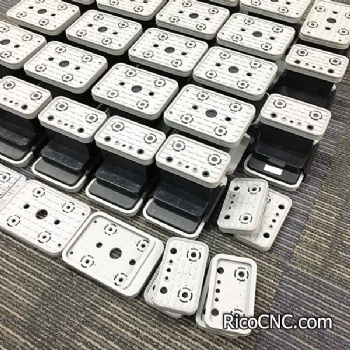

At RicoCNC you will find the solution for all vacuum fixing systems for CNC machining center tables, complete vacuum cups and replacement rubber gaskets are available.

suction cup vcbl-k2.jpg

If needs of any other CNC vacuum block models, welcome to contact us.


schmalz vacuum unit.jpg
