RC-V Carbide CNC Wood Lathe Turning Cutters Bits Knife Tools

RC-V Carbide CNC Wood Lathe Turning Cutters Bits Knife Tools

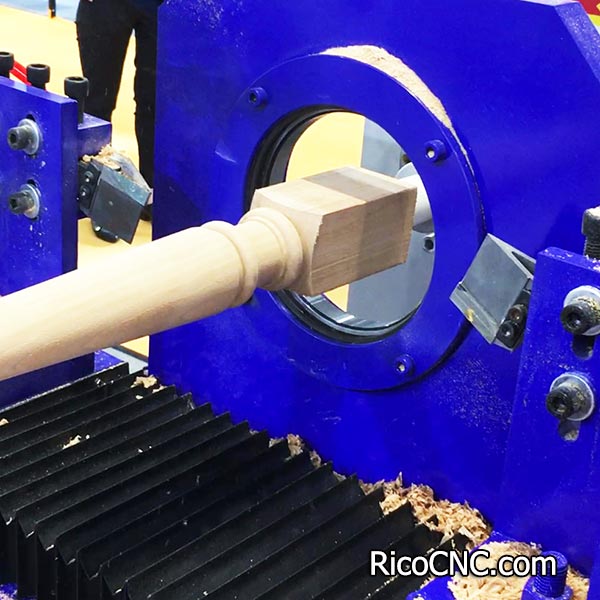

This CNC wood lathe turning tool is a new design carbide wood lathe cutter, it is used with CNC wood turning lathe machine, CNC automatic wood lathe, woodturning copy lathes, such as CNC auto motion, Cosen CNC, Intorex, Beaver, Unique CNC, StyleCNC, Laguna, etc, reduces the tool changing times greatly during one day working.

This wood lathe knife eliminates the need for frequent sharpening which is very common in lathe turning woodworking. Improved productivity, and reduce production costs.

The replaceable carbide cutter woodturning blade that addresses fatigue, safety and efficiency like no other tools. These CNC wood lathe tools are designed to effortlessly remove massive amounts of material on any woodturning project without the need for sharpening.

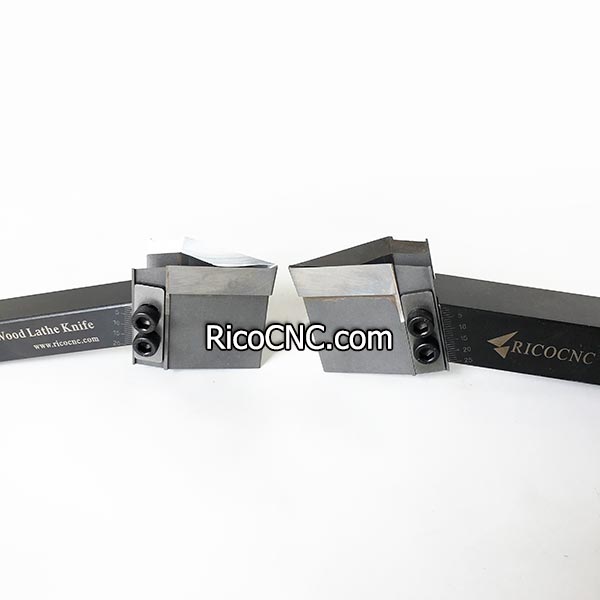

CNC Wood Turning Lathe Cutters Material:
Knife holder: 40Cr Steel, size 20*20*150mm or 25*25*150mm
Knife blade: high quality solid carbide
Blade length: 40mm
Cutting angle: 17 degree
Blade tip radius: 0.5mm or 0.75mm or 1mm or 1.5mm or 2mm or 5mm
Blade thickness: 13mm
Blade Hardness: 91-91.5 HRC

RC-V Series Carbide Woodturning Knives Models:

RC-V20R0.5 (20*20*150mm, R0.5)
RC-V20R0.75 (20*20*150mm, R0.75)
RC-V20R1.0 (20*20*150mm, R1.0)
RC-V20R1.5 (20*20*150mm, R1.5)
RC-V20R2.0 (20*20*150mm, R2.0)
RC-V25R0.5 (25*25*150mm, R0.5)
RC-V25R0.75 (25*25*150mm, R0.75)
RC-V25R1.0 (25*25*150mm, R1.0)
RC-V25R1.5 (25*25*150mm, R1.5)
RC-V25R2.0 (25*25*150mm, R2.0)

Please choose the model you need.

Carbide Wood Lathe Bits Features:
1, Super wearproof
We utilize carbide inserts in our carbide lathe tools which are at least 20 times more resistant to wear than high speed steel, which is common in more advanced wood lathe tools. The woodturning lathes bits’ carbide blade hardness is up to 91 HRC, super antiwear property.
2, High precision
Line error within 0.1mm, cutter tip smooth over 95%, ensures the great surface when the machine uses two sets of lathe cutter lathing.

Wood Lathe Turning Bits Applicable Materials:
Redwood, rosewood, hardwood, medium hard wood, plastic, acrylic, carbon fiber, resin, etc. Also can get a good surface when working on softwood and softer wood.

Carbide Wood Lathe Blades Notice:
As this wood CNC lathe cutter blade is cemented carbide, high hardness, it is more fragile than high speed steel. To avoid damage to tools, we had better avoid touching sands, small stones, nails, induration, etc. When then CNC wood turning machine knife is not sharp, we had better replace it to avoid the blade damage.

When sharpening the carbide woodturning tools, please grind with the diamond wheel and water.
