JAE JL04V-2E20-15PE-B-R Standard Circular Connector Male Pins Solder Cup

JAE JL04V-2E20-15PE-B-R Standard Circular Connector Male Pins Solder Cup

• JAE JL04V-2E20-15PE
• JL04V-2E20-15PE-B-R
• JAE Circular Connectors
• CONN RCPT MALE 7P SILV SLDR CUP
• 7 (6 + PE) Position Circular Connector Receptacle
• Male Pins Solder Cup
INQUIRY

JAE JL04V-2E20-15PE-B-R Standard Circular Connector Male Pins Solder Cup

This JAE JL04V-2E20-15PE-B-R Standard Circular Connector, Panel mount receptacle, TÜV, Individually waterproofed type, 7 pos., Pin, Contact arrangement code: 20-15.

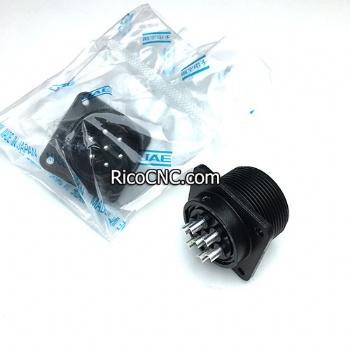

7 (6 + PE) Position Circular Connector Receptacle.jpg

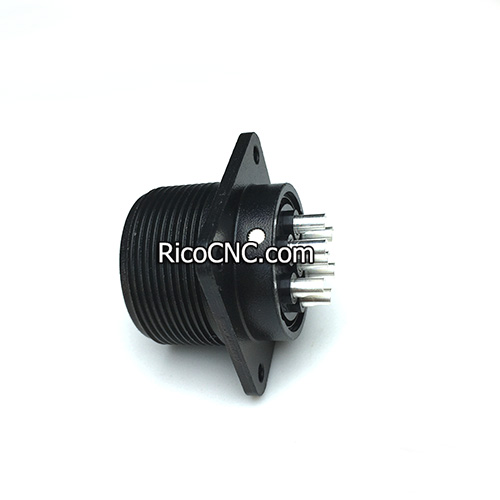

CONN RCPT MALE 7P SILV SLDR CUP.jpg

JL04V series Circular connectors features:

• Approved by TÜV Rheinland

• An authorized certifying organization of EU, as a product conforming to the connector standard EN61984 based on European safety standard EN60204-1.

• Sequential connection ensures reliable link with protection circuit.

• Earth terminal leading to metallic shell. First-to-make, last-to-break grounding contacts incorporated that connect with metallic shell to create protective earth circuit

• Waterproof (mated condition) structure

• Waterproof/ Dustproof of protection class IP67 prevents penetration of water, oil, dust

• Waterproof independent receptacle available

• 3 type plugs

• Plug is available in straight, angle and individual type

• Polarization

• Features on mating components to prevent incorrect mating

• Pin insert/ Socket insert

• For waterproof independent receptacle, Pin insert only is available.

• For non-waterproof receptacle, Socket insert only is available.

• Alternative insert positions

• To prevent mis-mating to connector, there are insert rotating positions available

JAE JL04V-2E20-15PE-B-R specification:

Part Number	JL04V-2E20-15PE-B-R
Status	Active
Number of Positions	7 pos.
Rated Current	23 A
Rated Voltage (AC Vr.m.s.)	250 (Pollution degree: 3/ Over voltage category: III)
Waterproof/ Non-waterproof	Individually waterproofed
Contact Arrangement Code	20-15
Connector Type	Panel mount receptacle
Contact Type	Pin
Wire Termination Method	Soldering
Applicable Wire Size (AWG)	#12
Coupling Style	Threaded
Contact Size	#12
Contact Size X No. of Contacts	#12*7
Applicable Wire (Cross-sectional Area of Conductor) (mm2 max.)	3.5
Alternative Insert Position (deg.)	0
Material of Contact	Copper alloy
Finish of Contact in Connecting Area	Silver plating
Outer Shell Color	Black system interference color
Total Current Rating (A)	105.7
Contact Resistance (milliohm max.)	2
Dielectric Withstanding Voltage (VACr.m.s. 1minute)	2,000
Insulation Resistance (megaohm min. )	1,000
Operating Temperature Range (deg. C)	-55 Deg. C to +125 Deg. C
RoHS compliant	10 substances (2011/65/EU, (EU)2015/863)
Combination	JA06A-20-15S-J1-R, JL04V-6A20-15SE-R

Male Pins Solder Cup.jpg

JAE Circular Connectors Applications:

Machine tools, Servomotors, Robots, Semiconductor Equipment, FA equipment, Industrial equipment, Rolling stock, Vessels, Telecommunications devices, Measurement equipment, Broadcast systems, Medical equipment, Computers and peripherals, and other electronic/ electric equipment.

JL04V series Circular connectors.jpg

There are other types:

JL04V-2E20-15PE-B-R, JL04V-2E20-4PE-B-R, JL04V-6A18-12SE-EB-R, JL04V-6A20-4SE-EB-R, JL04V-2E10SL-3PE-B-R, JL04V-2E18-12PE-B-R, JL04V-2E24-11PE-B-R, JL04V-6A10SL-3SE-EB-R, JL04V-6A10SL-3SE-R, JL04V-6A32-17SE-EB-R, JL04V-8A18-12SE-EB-R, JL04V-2E22-22PE-B-R, JL04V-2E18-10PE-B-R, JL04V-2E24-10PE(G)-B-R, JL04V-2E24-10PE-B-R, JL04V-2E32-17PE-B-R, JL04V-6A18-10SE-EB-R, JL04V-6A20-15SE-EB-R, JL04V-6A20-7SE-R, JL04V-6A22-22SE-EB-R, JL04V-6A24-11SE-EB-R, JL04V-8A20-15SE-EB-R
