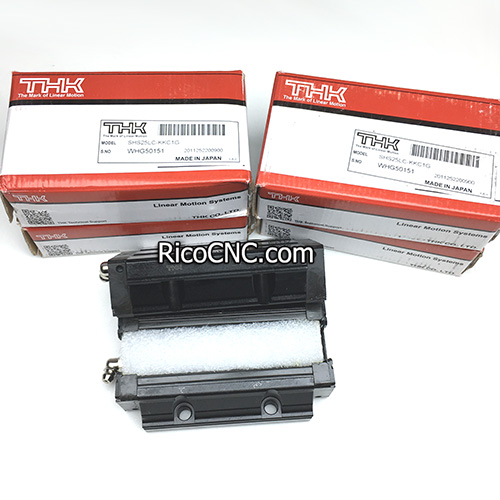

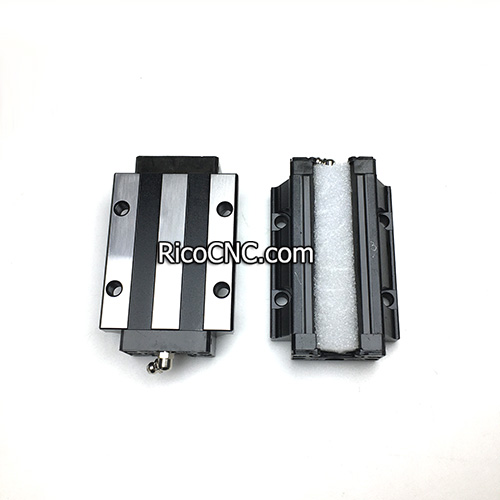

4-006-10-1918 4006101918 Linear Bearing THK SHS25LC-KKC1G Size 25 Linear Motion Block



THK Bearing SHS25LC Series Linear Motion Block, The flange of the LM block has tapped holes. It can be mounted from the top or the bottom. It can be used in places where the table cannot have through holes for mounting bolts.

HOMAG part number is 4006101918 or 4-006-10-1918.

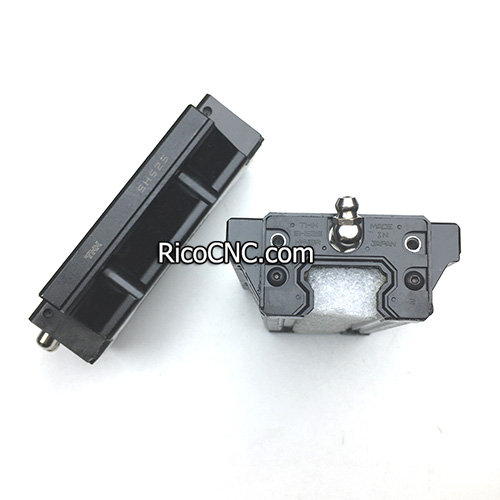

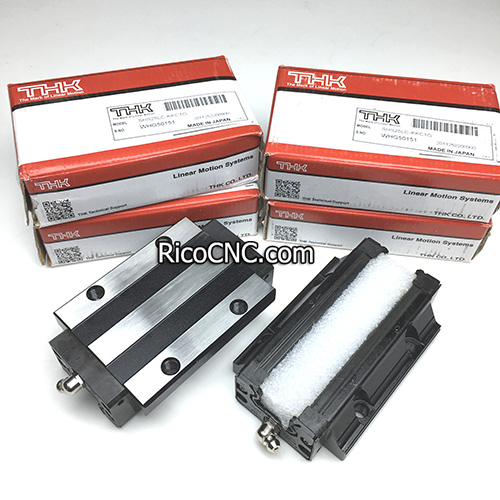

 4-006-10-1918 Linear guide block.jpg

THK SHS-C/LC series specification:



Model No.

Outer dimensions

LM block dimensions

Height

Width

Length

B

C

S

H

L1

T

T1

K

N

E

Grease
nipple

SHS 15C

24

47

64.4

38

30

M 5

4.4

48

5.9

8

21

5.5

5.5

PB1021B

SHS 15LC

79.4

63

SHS 20C

30

63

79

53

40

M 6

5.4

59

7.2

10

25.4

6.5

12

B-M6F

SHS 20LC

98

78

SHS 25C

36

70

92

57

45

M 8

6.8

71

9.1

12

30.2

7.5

12

B-M6F

SHS 25LC

109

88

SHS 30C

42

90

106

72

52

M10

8.5

80

11.5

15

35

8

12

B-M6F

SHS 30LC

131

105

SHS 35C

48

100

122

82

62

8.5

93

11.5

15

40.5

8

12

B-M6F

SHS 35LC

152

123

SHS 45C

60

120

140

100

80

M12

10.5

106

14.1

18

51.1

10.5

16

B-PT1/8

SHS 45LC

174

140

SHS 55C

70

140

171

116

95

M14

12.5

131

16

21

57.3

11

16

B-PT1/8

SHS 55LC

213

173

SHS 65C

90

170

221

142

110

M16

14.5

175

18.8

24

71

19

16

B-PT1/8

SHS 65LC

272

226

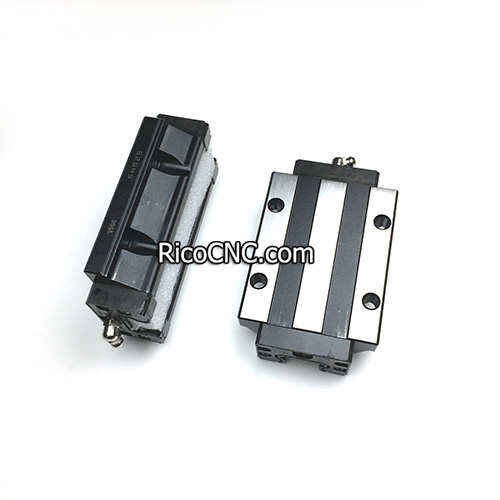

 4006101918 Linear bearing.jpg


Major applications: Machining center / NC lathe / drilling machine / electric discharge machine / conveyance system.

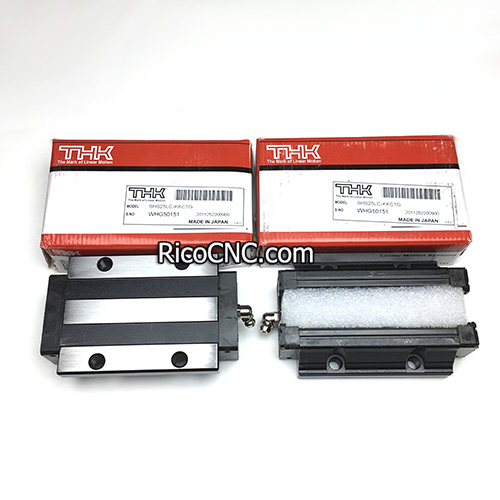

THK SHS25LC-KKC1G.jpg

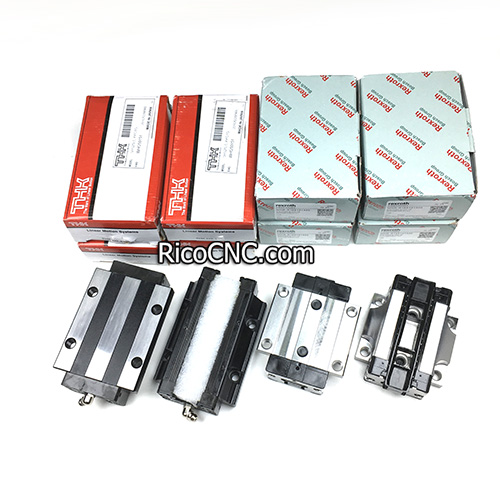

There are other block for Homag:

4-006-10-2269 Homag R162121420

4-006-10-2275 4006102275 Bosch Rexroth Linear Bearing Size 25 R165121420 for Homag

4-006-10-2276 4006102276 Linear Bearing Bosch Rexroth R162171420 for Homag

4-006-10-3296 4006103296 Linear Bearing

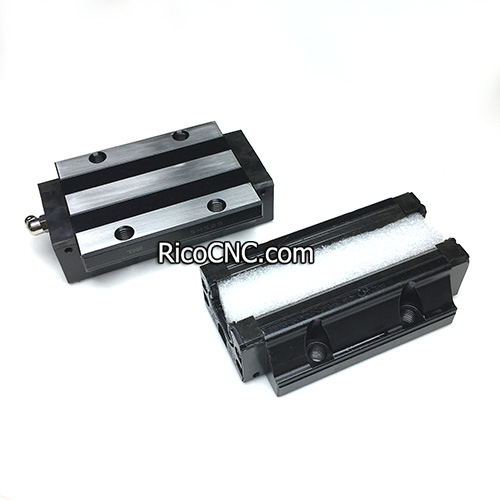

SHS25LC Series Linear Motion Block.jpg

RicoCNC supplies a range of linear guide block and rails brands such as Rexroth, INA, THK, HIWIN, PMI, ABBA, STAF, etc. All are original motion products.

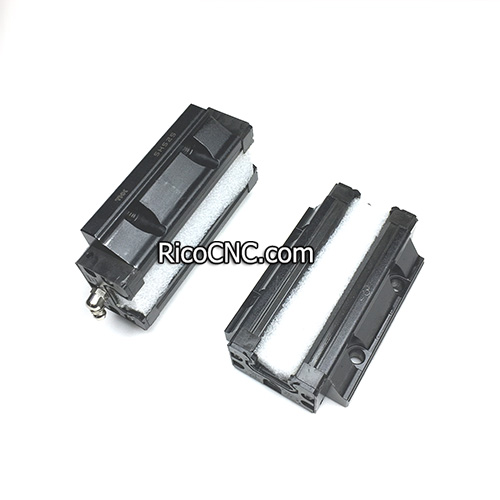

 4006101918 Linear guide block.jpg

There are also other Homag parts can be supplied here!


Welcome to inquiry us!
