10.01.12.00798 VCSP-U 140x115x16.5 VCBL-K2 Bottom Vacuum Suction Plate

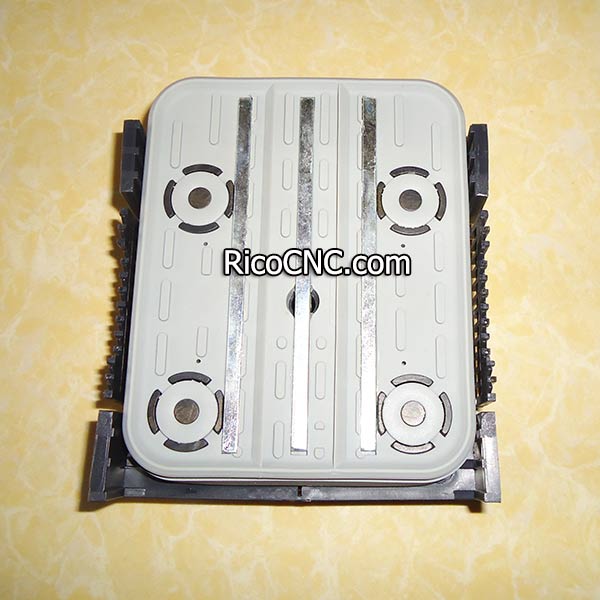

This bottom suction plate, Schmalz No.: 10.01.12.00798, Homag/Weeke No. 4-011-11-0102, is the 140 x 115mm replacement below rubber cover for the VCBL-K2 vacuum pod blocks. Work with Homag / Weeke / IMA CNC vacuum blocks for dual circuit systems.

140x115x16.5 VCBL-K2.jpg

The replacement suction plate for Schmalz vacuum block VCBL-K2 suction cups with catalog numbers:
10.01.12.00126, 10.01.12.00445, 10.01.12.00446, 10.01.12.00447, 10.01.12.00506, 10.01.12.00626, 10.01.12.00627, 10.01.12.00628, 10.01.12.00629, 10.01.12.00644, 10.01.12.00645, 10.01.12.00646, 10.01.12.00647, 10.01.12.00771, 10.01.12.00772, 10.01.12.00855, 10.01.12.00874, 10.01.12.01020, 10.01.12.02116, 10.01.12.02118, 10.01.12.02119, 10.01.12.02120, 10.01.12.02124, 10.01.12.02125, 10.01.12.02126, 10.01. 12.02136, 10.01.12.02199, 10.01.12.02593, 10.01.12.02594
VCSP-U 140x115x16.5.jpg

VCSP-U 140x115x16.5 VCBL-K2 bottom vacuum suction plate features:
Dimensions (L x W): 140 x 115 mm
Height H: 16.5 mm
For: Vacuum block VCBL-K2, 2-circuit console
Vacuum beam type VCBL-K2
Lower rubber gasket for CNC with dimensions of 140 x 115 used in machining centers HOMAG, Weeke, IMA, Masterwood, Felder, HolzHer, Reichenbacher, Busellato, Morbidelli, equipped with a double-circuit VCBL beam table from Schmalz.

RicoCNC supplies a range of replacement suction plates and complete vacuum cups for CNC router processing centers, such as Homag, Weeke, IMA, Biesse Rover, SCM, Morbidelli, Excitech, etc.
If any needs of CNC spare parts and woodworking machine parts & tools, welcome your inquiry.
