4011110249 Upper Suction Plates 130x30 for Homag CNC

4011110249 Upper Suction Plates 130x30 for Homag CNC

• 4011110249 top vacuum plate
• Schmalz VST VCSP: 10.01.12.00723
• VCDR 130x30x9: 10.01.12.00804 sealing frame
• REIB-PL 130x30x5.5 VCSP: 10.01.12.01438 friction plate
• Repair kit 130x30 for VCBL-K2 system
• Dimensions (L x W): 130 x 30 mm
• 4-011-11-0249 upper suction plates
• Schmalz wear part set
INQUIRY

4011110249 Upper Suction Plates 4-011-11-0249 130x30mm for Homag CNC

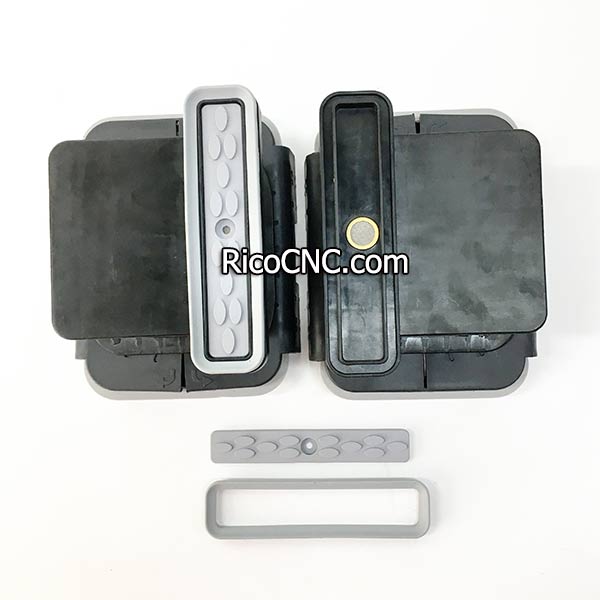

This top suction plate, Schmalz No.: 10.01.12.00723, Homag/Weeke No.: 4011110249 (4-011-11-0249), is the 130 x 30mm replacement top rubber cover for the CNC vacuum pod blocks.


The replacement suction plate for Schmalz vacuum suction cups with article numbers:
10.01.12.00854, 10.01.12.00855, 10.01.12.00379, 10.01.12.02508, 10.01.12.00378, 10.01.12.00646, 10.01.12.00647, 10.01.12.01300, 10.01.12.01455, 10.01.12.01475, 10.01.12.01691, 10.01.12.01692, 10.01.12.02120, 10.01.12.02126, 10.01.12.02207, 10.01.12.02320, 10.01.12.02324, 10.01.12.02373, 10.01.12.02374

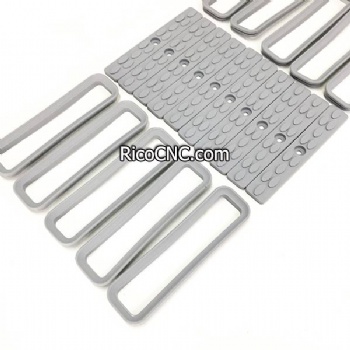

vacuum friction plate.jpg

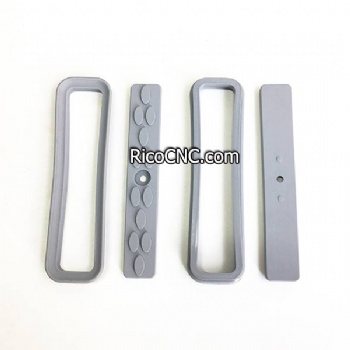

The VST VCSP 10.01.12.00723 vacuum upper suction plate include:
VCDR 130x30x9 sealing frame
Part no.: 10.01.12.00804
Length L: 130 mm
Width B: 30 mm
Height H: 9 mm

REIB-PL 130x30x5.5 VCSP friction plate
Part no.: 10.01.12.01438
Length L: 130 mm
Width B: 30 mm
Height H: 5.5 mm
for: Vacuum block suction plate

RicoCNC supplies a range of CNC vacuum cups and rubber pads for CNC router processing centers, such as Homag, Weeke, IMA, Biesse Rover, SCM, Morbidelli, Excitech, etc.
