Schneider Electric VW3M3402 Lexium Interface Card for Digital Output Encoder

Schneider Electric VW3M3402 Lexium Interface Card for Digital Output Encoder

• VW3M3402
• Schneider Electric VW3M3402
• VW3M3402 Lexium Interface Card
• Female Sub-D Connector VW3M3402
• SQUARE D VW3M3402
• DIGITAL ENCODER OPTION MODULE
• Communication Card for digital output for machine
• Direct Mount Interface Card
INQUIRY

Schneider Electric VW3M3402 Lexium Interface Card for Digital Output Encoder

This is interface card for digital output encoder, module number is VW3A3608. made by Schneider Electric.

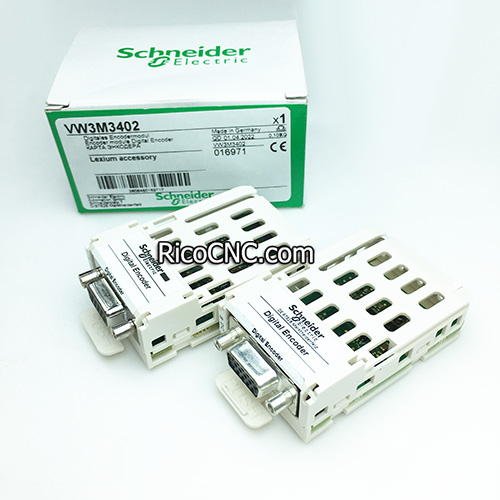

VW3M3402 Lexium Interface Card .jpg

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The interface card provides digital output for machine encoder. It is an interface card with a rated supply voltage of 12V for SSI encoder, 5V for A/B/I encoder, 5V for BISS encoder, 5V for EnDat 2.2 encoder. It is furnished with 15-way D-Sub (DE-15) female high definition connector for electrical connection. This product is compatible with Lexium 32M servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.

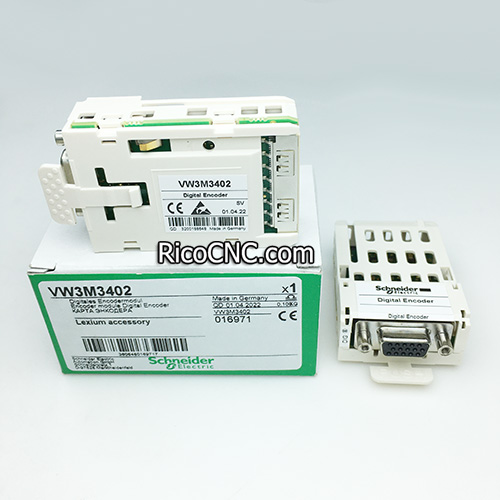

Female Sub-D Connector VW3M3402.jpg

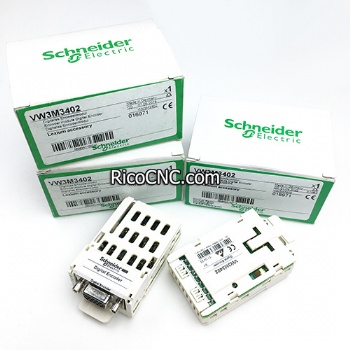

Schneider Electric VW3M3402.jpg

VW3M3402 Lexium Interface Card Specification:

Main
Range of product	Lexium 32
Product or component type	Encoder interface module
Accessory / separate part type	Card with digital output
Accessory / separate part category	Connection accessory
Accessory / separate part destination	Machine encoder
Encoder type	BISS
	EnDat 2.2
	A/B/I
	SSI
Complementary
Product compatibility	Lexium 32M
[Us] rated supply voltage	12 V for SSI encoder
	5 V for A/B/I encoder
	5 V for BISS encoder
	5 V for EnDat 2.2 encoder
electrical connection	1 female connector high definition SUB-D 15 pin(s)
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.8 cm
Package 1 Width	5.0 cm
Package 1 Length	9.2 cm
Package 1 Weight	56.0 g
Unit Type of Package 2	S01
Number of Units in Package 2	24
Package 2 Height	15.0 cm
Package 2 Width	15.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	1.571 kg
