Brand New Wenglor Y1TA100QXT3 Laser Distance Sensor

• Wenglor Y1TA100QXT3 laser distance sensor
• WENGLOR Y1TA100QXT3 photoelectric sensor
• WENGLOR Y1TA100QXT3 sensor
• WENGLOR Y1TA100QXT3
• Working Range 0.1-10.1M, Resolution 1-12MM, 18-30VDC
• WENGLOR Time-of-flight sensor
• Y1TA100QXT3 Wenglor proximity switch
• Wenglor high-performance distance sensor
INQUIRY

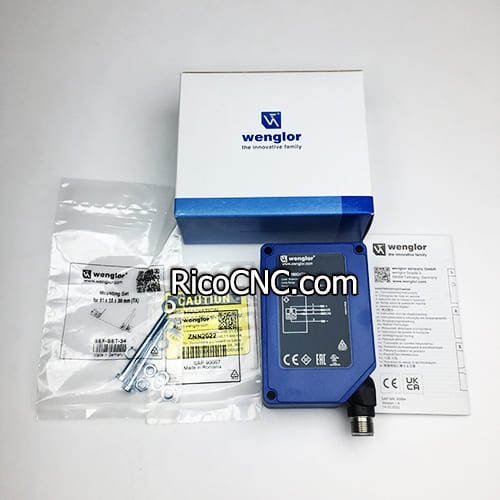

Y1TA100QXT3 photoelectric sensor.jpg

Brand New Wenglor Y1TA100QXT3 Laser Distance Sensor

This is Wenglor Y1TA100QXT3 laser distance sensor, 0.1-10.1M RANGE, PNP/NPN/PUSH-PULL, 2OUTPUTS, M12 IP68. It can be used on Biesse woodworking machine.

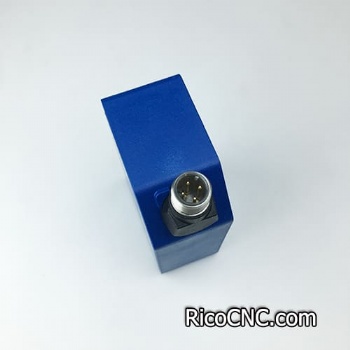

wenglor Y1TA100QXT3.jpg

This sensor is scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. For this reason, the object's color, shape, and surface characteristics have practically no influence on measurement results. Even dark objects can be reliably recognized.

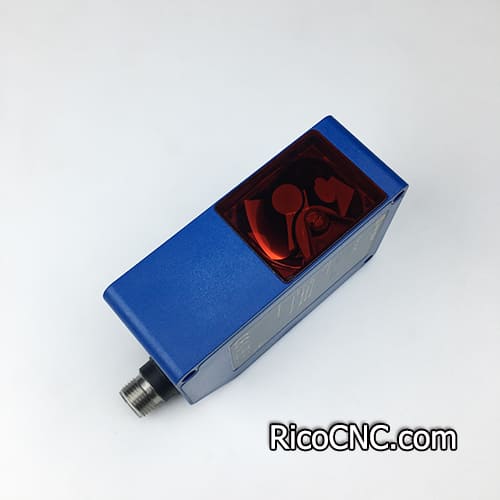

WENGLOR Y1TA100QXT3 sensor.jpg

Wenglor Y1TA100QXT3 laser distance sensor.jpg

Product Summary:
•   Supply Voltage: 18...30 V DC
•   Current Consumption (Ub = 24 V): < 100 mA
•   Switching Frequency: 50 Hz
•   Measuring Rate: 1...100 /s
•   Response Time: 10...200 ms
Specification:

Working Range	0.1 … 10.1 m
Measuring Range	10 m
Resolution	1 … 12 mm
Linearity	0.5 %
Linearity Deviation	50 mm
Switching Hysteresis	3 … 20 mm
Light Source	Laser (red)
Wavelength	660 nm
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	2
Max. Ambient Light	10,000 Lux
Beam Divergence	< 2 mrad
Light Spot Diameter	see Table 1

WENGLOR photoelectric sensor.jpg

RicoCNC can offer electrical and electronic components, such as sensors, control components, industrial automation equipment, and more.
If you would like to request more information, please feel free to contact us.
