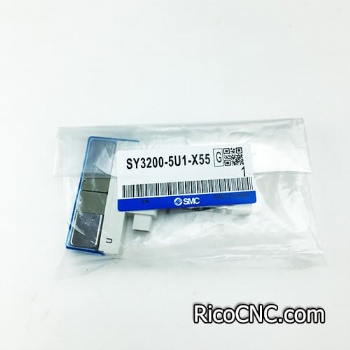

Brand New SMC SY3200-5U1-X55 Solenoid Valve For Biesse CNC Machine

Brand New SMC SY3200-5U1-X55 Solenoid Valve For Biesse CNC Machine

This is SMC SY3200-5U1 SY3000 5-Port Base Mounted Double Internal Pilot Non-Locking Push Solenoid Valve With Light, 0.1 to 0.7 MPa Pressure, 356 Lpm Flow Rate, 4 Ways, 2 Positions.
Features
Ambient & fluid temperature: -10 to 50°C
Coil rated voltage: 12, 24VDC; Response time (0.5MPa) w/o indicator light & surge voltage suppressor: 16ms or less
Operating pressure range: (internal pilot) 0.1 - 0.7MPa (external pilot) -100kPa to 0.7MPa (external pilot, pilot pressure range) 0.25 - 0.7MPa
Fluid: air
SMC has improved product performance and reliability with the redesigned SY series valve. The SY3000 and SY5000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. By using H-NBR seal material for the main valve and seals, Ozone resistance has been improved.  Side, top, and bottom port/pipe directions are available to allow flexible installation.  The SY is available in body-ported or base-mounted styles and can be used individually or manifold-mounted.

Actuation: Piloted Solenoid, Piloted Solenoid
Body Material: Zinc
Bracket Type: w/o Bracket
Coil Specifications: Standard
Flow Direction:4-Way
Manual Operation Type: Non-Locking Push, Non-Locking Push
Maximum Operating Pressure: 101 psi, 101 psi
Number of Ports: 5, 5
Number of Positions: 2
Number of Solenoids: Double
Operating Temperature Range:14 to 122 °F, 14 to 122 °F
Response Time: ≤12 ms
Seal Material: Rubber
Series: SY
Solenoid Allowable Voltage Fluctuation: ±10 %
Solenoid Power Consumption: 0.35 W
Solenoid Supply Voltage: 24 V dc
Standards Met: IEC 60529
Thread Standard: Rc, Rc
Valve Series: SY3000
Voltage: 24 V dc, 24 V dc
Voltage Suppressor: With Light/Surge Voltage Suppressor, Non-polar type
