4011041629 4-011-04-1629 Solenoid Valve AVENTICS Series TC15 0820059001

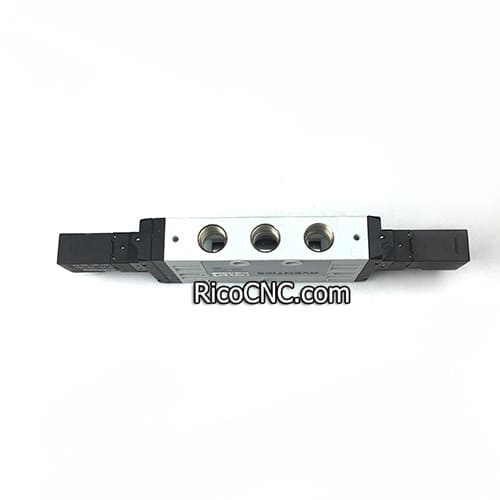

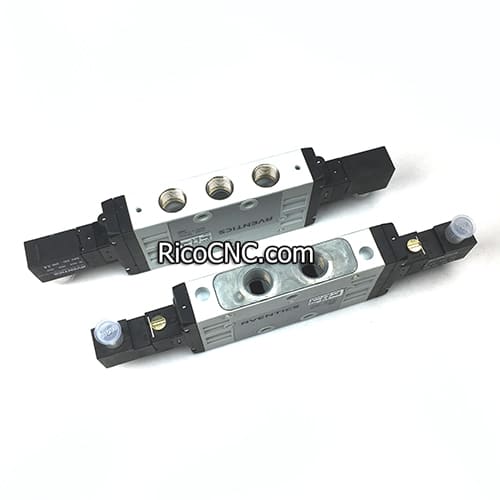

This is a solenoid operated air control valve made by AVENTICS, it is series TC15, the model number is 0820059001, TC15-5/3CC-DO-024DC-I-FORM_C-SGL. It is with 5 port, 3 position and double solenoid. Normally used for HOMAGH machine, the HOMAG part number is 4011041629 or 4-011-04-1629.

4-011-04-1629 valve.jpg

Air Control Valve 0820059001.jpg

AVENTICS 0820059001 air control valve specifications:

Weight0.282 kg
Electrical interfaceform C, ISO 15217
Manual overridewith detent
Connection outputG 1/4
Connection exhaustG 1/4
Flow Qn1300l/min
Ambient Temperature Max50DegC
Ambient Temperature Min-10DegC
Connection inputG 1/4
Working Pressure Max10 Bar
Working Pressure Min3 Bar
Voltage24V DC

AVENTICS Series TC15.jpg


There are also other Aventics valves can be supplied here, such as:

4-011-04-1279 4011041279 Homag KAR Pneumatic Directional Valve AVENTICS 0820060761

4-011-04-1312 Homag 4011041312 BOSCH Rexroth Aventics 0820059051 Pneumatic Directional Valve

4-011-04-1463 Homag 4011041463 Pneumatic Valve Aventics Pneumatic Directional Valve 0820058126 for Edgebander

4-011-04-1718 / 4011041718 Electric valve 5/2 G1/4 TS15

4011041578 0820060026 Aventics Pneumatic Directional Control Valves

Aventics Pneumatic Valve 0820060076 Pneumatic Solenoid Valve TC08-5/2XX-AS-024DC-E-FORM_C-SGL

0820055101 BOSCH REXROTH AVENTICS 0 820 055 101 Pneumatic Directional Valve for Homag Holzma

BOSCH AVENTICS 0820055052 Rexroth 0-820-055-052 Pneumatic Directional Control Valve

BOSCH 0820055102 Aventics Pneumatic Directional Valve for Homag Machines

Rexroth AVENTICS R412007269 AS3-SOV-G012-024 Directional Valve

BOSCH RVENTICS 0821002003 Pneumatic Quick Exhaust Valve For Homag

AVENTICS 0820059001.jpg
