REXROTH Series HF02-LG 0820056101 Pneumatic Directional Valve

REXROTH Series HF02-LG 0820056101 Pneumatic Directional Valve

• 0820056101
• Rexroth directional valve
• Series HF02-LG 0820056101
• HF02 - 3/2CC - 024DC
• 0820056101 Aventics Pneumatic Directional Valve
• Pneumatic components 0820056101
• 2x3/2-directional valve
• Aventics control valve
INQUIRY

REXROTH Series HF02-LG 0820056101 Pneumatic Directional Valve

This is a Rexroth pneumatic directional valve, also called AVENTICS or BOSCH valve, it is Series HF02, HF02 - 3/2CC - 024DC, the model number is 0820056101.

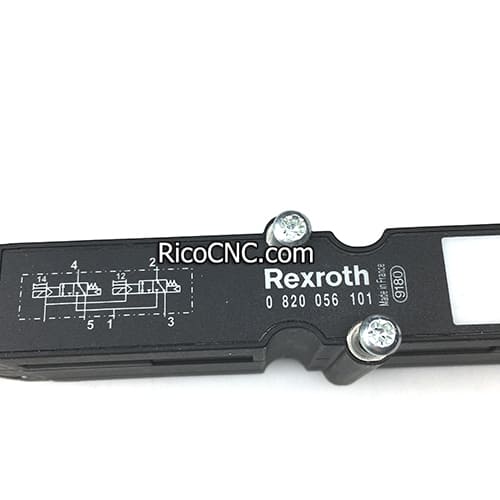

Series HF02-LG 0820056101.jpg

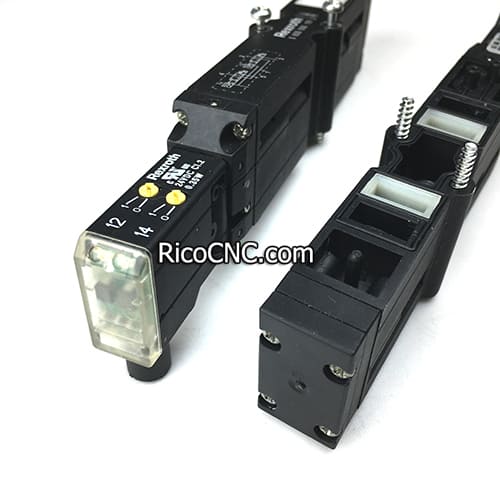

Rexroth directional valve.jpg

0820056101 Aventics Pneumatic Directional Valve Features:

• Modular design with up to 32 valves and 32 coils

• Flow rates up to 1,400 liters/minute

• 0.35 W pilot valve per coil

• Plastic base plate for optimized weight

• Can be mounted directly on assembly system profiles

• High connectivity through Multipol or fieldbus connection

Aventics control valve.jpg

Pneumatic components 0820056101.jpg

Pneumatic components 0820056101 specifications:

Valve type	Spool valve, positive overlapping
Switching principle	2x 3/2 NC/NC, with spring return
Valve function	NC/NC
Sealing principle	Soft seal
Connection type	Plate connection
Manual override	with detent
Pilot control exhaust	With collective pilot air exhaus
Nominal flow Qn	1400 l/min
Flow conductance b	0.4
Flow conductance C	5.87 l/(s*bar)
Min. working pressure	-0.9 bar
Max. working pressure	10 bar
Min. control pressure	3 bar
Max. control pressure	10 bar

0820056101 Aventics Pneumatic Directional Valve.jpg 0820055052/0820055051/0820055102/0820055601/0820055501/0820055101 AVENTICS BOSCH REXROTH solenoid valves are also available.
