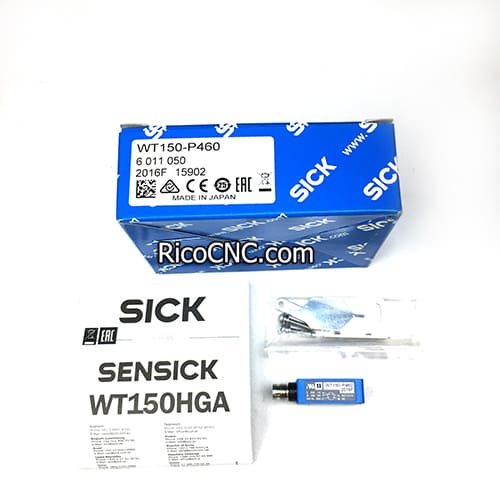

SICK WT150-P460 Miniature Photoelectric Sensors

SICK WT150-P460 Miniature Photoelectric Sensors

• WT150-P460 SICK
• MINIATURE PHOTOELECTRIC SENSORS
• WT150-P460 Photoelectric Proximity Sensor
• part number: 6011050
• Sick WT150-P460 Photo Proximity Sensor
• Sick PROXIMITY SENSOR
• LED sensor
• SICK WT150-P460 Photocell
INQUIRY

SICK WT150-P460 Miniature Photoelectric Sensors

PHOTOELECTRIC PROXIMITY SENSOR, 2-100MM RANGE, 10-30VDC, PNP, M8 MALE CONNECTOR, 4PIN

The SICK WT150 Photoelectric Sensor utilises a visible red light source, monitoring that beam in order to trigger a process response should the beam be interrupted by an object. The model number is WT150-P460. This capable sensor features potentiometer sensitivity adjustment, robust ABS plastic body, PNP output, visible red light beam and status LED. The precise background suppression built-in to this sensor helps reduce false readings caused by stray background reflections.

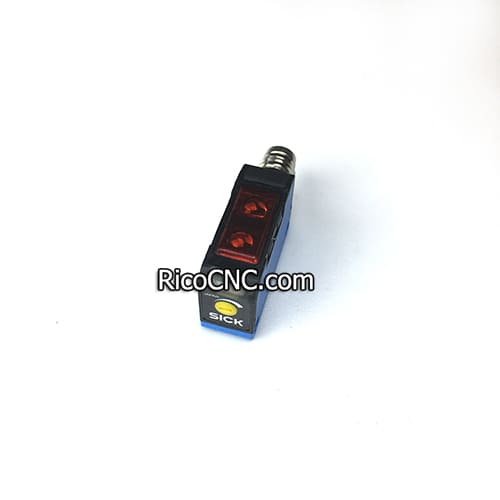

Sick PROXIMITY SENSOR.jpg

Photoelectric Sensor WT150-P460 Specifications:

Functional principle	Photoelectric proximity sensor
Functional principle detail	Background suppression
Dimensions (W x H x D)	10 mm x 28 mm x 18 mm
Housing design (light emission)	Rectangular
Sensing range max.	2 mm ... 100 mm
Focus	Approx. 5°
Type of light	LED
Angle of dispersion	Approx. 5°
Adjustment	Potentiometer, 5 turns

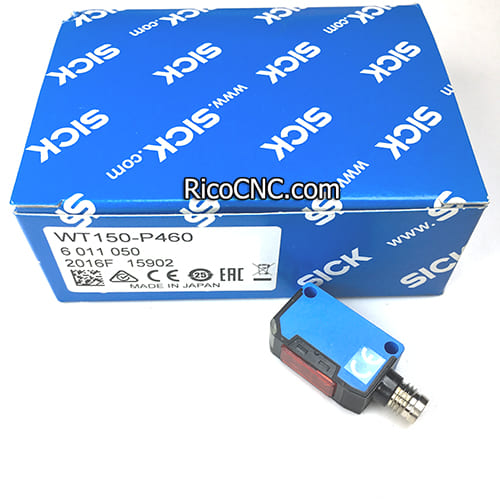

SICK WT150-P460 Photocell.jpg

Common applications for photoelectric sensor includes, controlling the transport of components, production processes, safety systems and material handling systems and other industrial applications. Easy to install, the visible red light spot and the potentiometer allows for rapid set-up and installation. The fast reaction time of this Photoelectric Sensor ensures reliable detection of difficult objects at fast processing line speeds in demanding situations increasing throughput and helping to reduce overheads.
