HSK100A-D50-300 Runout Test Arbors for Milling Spindles

HSK100A-D50-300 Runout Test Arbors for Milling Spindles

• HSK100A-D50-300 test bar
• HSK100A test arbor
• HSK100A Tool Holder Gage Bar
• HSK100A Spindle Runout Test Arbors
• HSK Runout Test Arbors for Milling Spindles
• HSK100A-D50-300 Spindle Testbars
• Alignment Arbor
• HSK100A Test Arbor 50mm x 300mm
INQUIRY

HSK100A-D50-300 Runout Test Arbors for Milling Spindles

This HSK100A test bar HSK100 A form, bore diameter 50mm, 300mm long, it is primarily used for checking accuracy and to set the axes of the machine tool and tool pre setter.

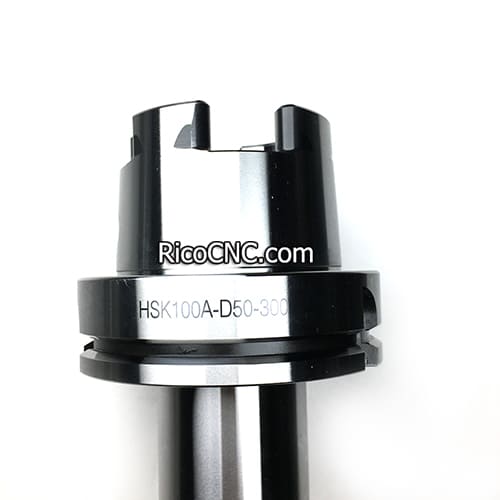

HSK100A Spindle Runout Test Arbors.jpg

This HSK100A alignment arbor Works on all HSK100A machines, Precision ground, made from hardened alloy steel. This test arbor is suitable for calibrating your machine spindle.

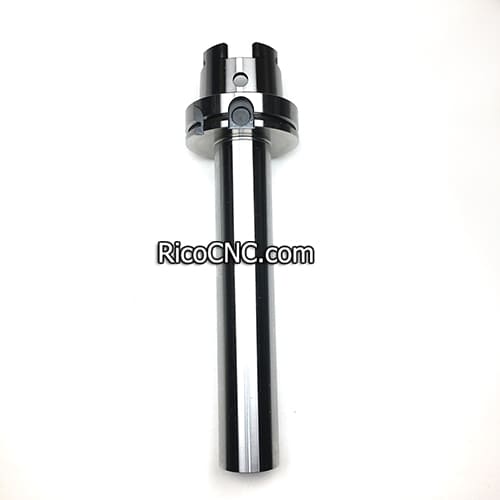

HSK100A test arbor.jpg

HSK100A-D50-300 spindle runout test arbor parameters:

Model: HSK100A-D50-A300 (L=270mm)

Roundness within 0.003mm

Concentricity within 0.005mm

Surface roughness Ra < 0.4

Made from 20CrMnTi hardened to 54 - 56rc

Arbor diameter is 50mm in diameter

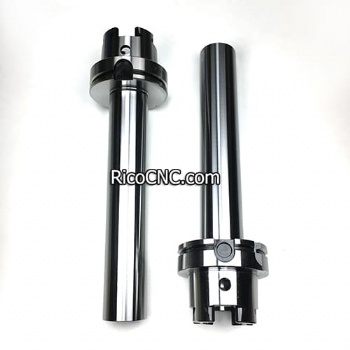

HSK100A Tool Holder Gage Bar.jpg

Calibrating arbors helps to detect early on excessive tilt or axial play, which can significantly reduce machine performance and lead to excessive tool wear and breakage. Regular inspection and calibration of spindles ultimately reduces downtime and avoids costly long-term repairs to the machine tool spindle and associated bearings.

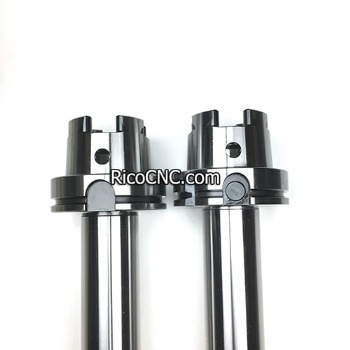

Alignment Arbor.jpg
