MITSUBISHI Internal Absolute Encoder for AC Servo Motor HF104S-A48

MITSUBISHI Internal Absolute Encoder for AC Servo Motor HF104S-A48

• HF104S-A48 Servo Encoder
• HF-104S-A48 Mitsubishi
• MITSUBISHI Internal Shaftless Encoder
• OSA18 servo motor encoder for HF104S-A48
• MITSUBISHI OSA18-100 Absolute Encoder
• OSA 18 Absolute Encoder
• AC Servo Motor Encoder
• Internal Absolute Encoder
INQUIRY

MITSUBISHI Internal Absolute Encoder for AC Servo Motor HF104S-A48

This built-in absolute encoder MITSUBISHI reference OSA18 is initially mounted on MITSUBISHI servo motors like the AC brushless rotary servo motor HF104S-A48.

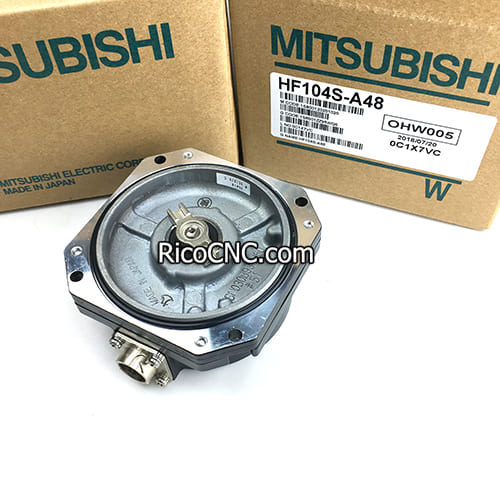

HF-104S-A48 Mitsubishi.jpg

Absolute encoders are feedback devices that provide speed and position information by outputting digital words or bits associated with motion. Unlike incremental encoders, which output a ubiquitous stream of continuous pulses, absolute encoders output a unique word or bit for each position.

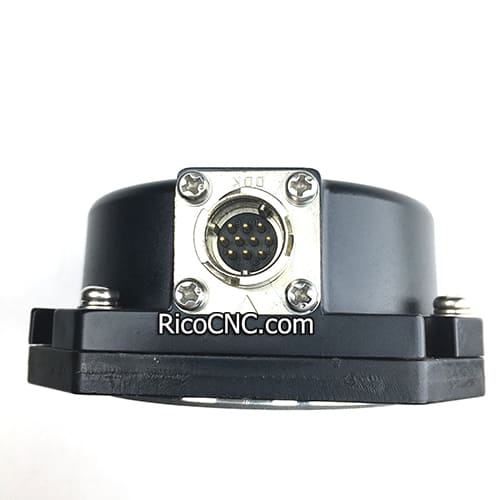

MITSUBISHI Internal Shaftless Encoder.jpg OSA18 servo motor encoder for HF104S-A48.jpg

Servomotor encoders detect the angle of rotation, speed, and distance travelled of moving machine parts and send position feedback to the controller. The controller sends electrical signals to a driver, which amplifies and converts the signals to a servo motor. The servo motor rotates the output shaft to produce the correct torque and speed for the commanded position.

MITSUBISHI OSA18-100 Absolute Encoder.jpg
