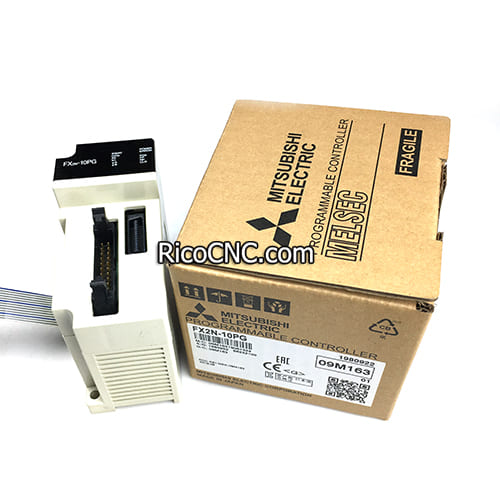

FX2N-10PG Mitsubishi PLC Pulse Output Module FX2N10PG

This is a PLC programmable controller made from Mitsubishi, the model number is FX2N-10PG or FX2N10PG. Model Type: MELSEC-F Series FX2N.

Mitsubishi Electric Power motion .jpg

FX2N-10PG Programmable Controller.jpg

Mitsubishi PLC Pulse Output Module FX2N10PG Specifications

Primary brand	Mitsubishi Electric
Main function	Positioning unit
Product series / family name	Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC-F (FX) series > Motion control units
Sub-range name	MELSEC-F - FX2N series
Functions	Motion/positioning module
Design	1-axis
Design	1MHz output
Mounting mode	DIN rail
Technical compatibility with	FX3U
Technical compatibility with	FX3UC
Order code / Manufacturer SKU	FX2N-10PG
Manufacturer product status	Commercialized
Equivalent to	FX2N10PG

Positioning Module.jpg

Pulse Output Block FX2N-10PG.jpg

FX2N-10PG Programmable Controller features:

• Multi-point 8-Channel Analog Input

A single block is capable of handling the input of 8 analog channels. Voltage, current and temperature (thermocouple) inputs can be selected for each channel.

• High Functionality

Highly precise setting variations such as 0.63mV for voltage input, 2.50µA current input and 0.1°C temperature input enable minute detection of fluctuation in analog input values.

• High-Speed A/D Conversion

Conversion is executed at 500µs times the number of channels (temperature input: 3ms×number of channels). Most efficient when average analog input data is used.
