0820055301 AVENTICS Pneumatic Valves Series HF03-LG

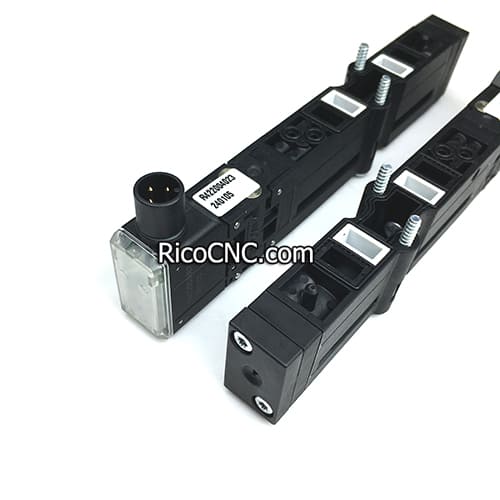

This is a 2x3/2-directional valve, Series HF03-LG from AVENTICS, the model number is 0820055301 with R422004023 Solenoid Valve coil.
AVENTICS 0820055301 Pneumatic Valves specifications:
| Switching principle | 2x 3/2 NC/NO, with spring return |
| Valve function | NC/NO |
| Manual override | with detent |
| Pilot | External |
| Nominal flow Qn | 850 l/min |
| Operational↩voltage | 24 V DC |
| Voltage tolerance DC | -0.75 |
| Min. working pressure | -0.9 bar |
| Max. working pressure | 10 bar |
| Typ. switch-on time | 20 ms |
| Typ. switch-off time | 25 ms |
| Protection class with connection | IP65 |
| Reverse polarity protection | Protected against polarity reversal |
| Sealing principle | 16 mm, Soft seal |
| Power consumption DC | 0.35 W |
| Duty cycle | 100% |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 50 °C |
| Housing material | Polyamide fiber-glass reinforced |
Rico also can supply other AVENTICS valves such as:
AVENTICS Electric valve 0820060501
REXROTH Series HF02-LG 0820056101 Pneumatic Directional Valve
Electric Valve AVENTICS 0820060771 for HOMAG machine
Solenoid Valve 0820060026 Aventics Pneumatic Directional Control Valves
0820055101 BOSCH REXROTH AVENTICS 0 820 055 101 Pneumatic Directional Valve
BOSCH AVENTICS 0820055052 Rexroth 0-820-055-052 Pneumatic Directional Control Valve
BOSCH 0820055102 Aventics Pneumatic Directional Valve for Homag Machines
Rexroth 0820 062 101 AVENTICS 0820062101
Bosch 0820 062 501 Rexroth Aventics
etc.
Please contact Rico for more information!
